Spraying control system 024217 series

flow-control

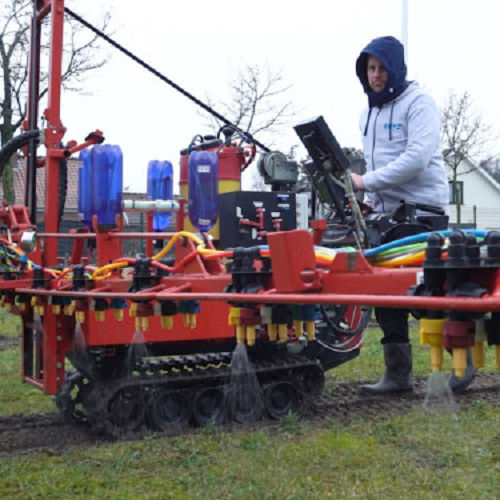

Registration of sprayed amount per plot (GEP and GLP) Due to the small size of experimental field plots, very precise measuring of applied PPP is required as well as the ability to store and export all this data. The spray monitor is an easy to use device that can be installed on all types of wheelbarrow, mounted or other driven type sprayers for experimental plots or other purposes. The unit registers time and sprayed amount for up to 500 plots. This data can be transmitted to a computer (USB) and integrated in a TXT file. The system is used in multiple GEP and GLP trials with approved facilitators. .The monitor displays continuously the sprayed amount and the average flow rate. .Registers for each plot: the sprayed amount, working time (to calculate speed), average flow rate. .The precise flow meter is mounted in the spray line (max. 1% error after calibration in a stable spray system as of 50 ml is sprayed). .This monitor is a multiple line device and can have up to 16 spray lines. There are versions available of 4, 8, 12 and 16 lines but also other amounts are possible. .Single line applications or simultaneous multiple line applications are possible and are as such registered. .An ON/OFF switch can be integrated for each spray line. .The monitor requires 12V.
