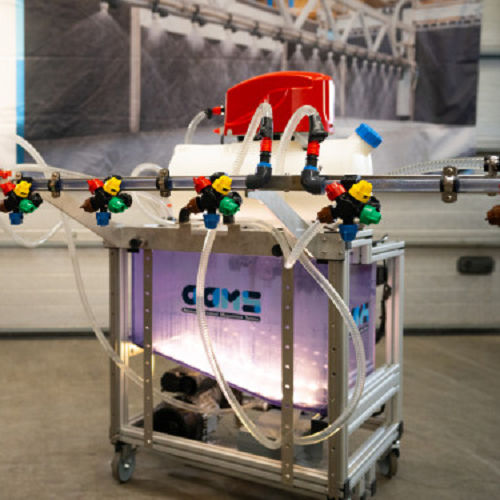

Demonstration wheeled sprayer 0072110

electrically-powered

Visualizing flow of PPP's, effect of pressure on nozzle type, difference in nozzle type, cleaning procedures, etc. in order to increase operator awareness on factors influencing the complete spraying process. The demo sprayer is developed to show all normal functions of a sprayer (pressure regulation, shut off/on, section control valves with adjustable return, hydraulic agitation, spray boom heighs, nozzle interdistances of 25 and 50 cm etc.). As much as possible parts are made transparant so be able to follow the liquid through the spraying process. Recirculation system is optional. Optional The sprayer can be equipped with an extra cleaning kit that can be used to demonstrate different cleaning procedures (triple rinsing/continuous cleaning/etc). .Empty weight: 35 kg .The spray boom can be placed at different height intervals .A small patternator can be used to check the distribution underneath the boom .All nozzle bodies can be individually closed. .Transparent tubes and tank show all the internal actions in the sprayer .To better illustrate the functioning of the rotating nozzles, led lights are mounted under in the tank .All parts of the demo sprayer are made of aluminium or stainless steel to guarantee a long life time OPTIONS .The sprayer can be equipped with an extra cleaning kit that can be used to demonstrate different cleaning procedures (triple rinsing/continuous cleaning/etc).
