Spraying control system 0242099

flow-control

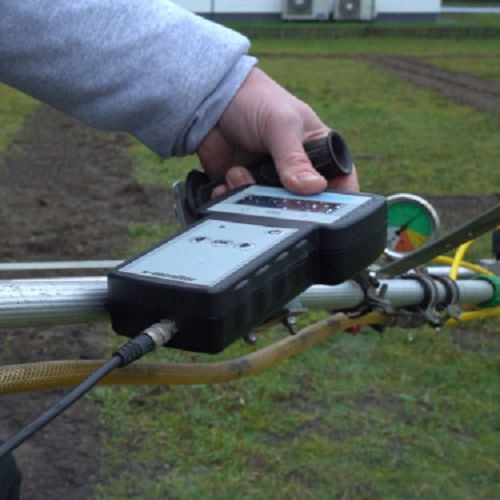

Registration of sprayed amount per plot (GEP and GLP) Due to the small size of experimental field plots, very precise measuring of applied PPP is required as well as the ability to store all these data. The spray monitor is an easy to use, lightweight (365 g) hand held device that can be installed on all types of knapsack sprayers or pneumatic sprayers for experimental or other purposes. The unit registers time and sprayed amount for up to 500 plots. This data can be transmitted to a computer (USB) and integrated in a TXT file. The system is used in multiple GEP and GLP trials with approved facilitators. .The monitor displays continuously the sprayed amount and the average flow rate. .Registers for each plot: the sprayed amount, working time (to calculate speed), average and maximal flow rate. .The precise flow meter is mounted in the spray line (max. 1% error after calibration in a stable spray system as of 50 ml is sprayed). .The monitor uses two 1,2V rechargeable batteries (AA). OPTIONS .The monitor can be combined with up to 10 flow meters to register the flow of different booms (not simultaneously).
