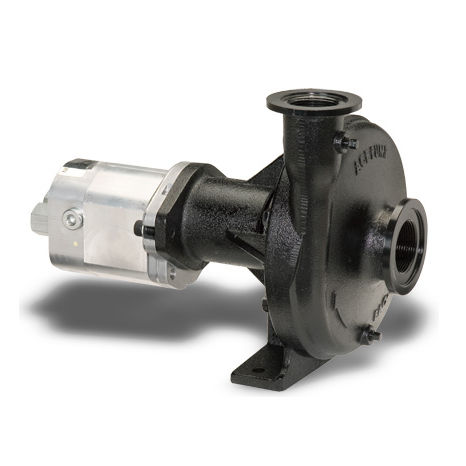

Irrigation pump FMC-650F-HYDhigh-pressurehydraulically-operatedimpeller
Add to favorites
Compare this product
Characteristics
- Application
- irrigation
- Other characteristics
- high-pressure, hydraulically-operated, impeller, gear
- Flow
Max.: 54.9 l/min
(14.50305 us gal/min)Min.: 31.4 l/min
(8.295 us gal/min)- Pressure
Max.: 160 psi
Min.: 0 psi
Description
Modified impeller design develops higher pressure at lower RPM.
F model equipped with NPT ports and industry standard flanged connections.
Durable E-Coat finish provides extra corrosion resistance on all surfaces inside and out.
Oversized bearings for extended pump life.
Splined motor to pump shaft connection strengthens the power train while allowing for easy repair and maintenance.
4000 PSI high efficiency pressure plated gear motor provides higher output with less oil flow.
The M16 motor requires 14 GPM (53 LPM) maximum hydraulic fluid input.
Recommended for:
Pressure Compensating Closed Center Systems
Load Sensing Closed Center Systems
Open Center Systems up to 14 GPM (53 LPM)
