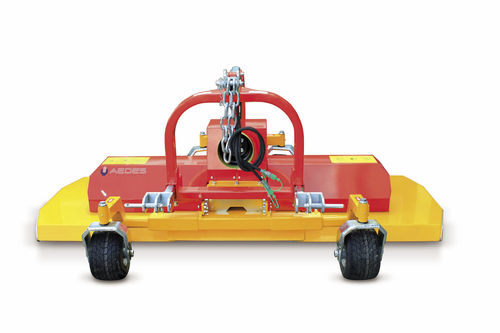

Mounted mower RMV Series

flailPTO-drivengrass

Standard equipment and key features: Width adjustable grass cutter, compact, extra SHORT and robust, transmission through gearboxes. STANDARD EQUIPMENT AND ADVANTAGES • Compact and robust structure with hydraulic width adjustment • Two hydraulic cylinders for hydraulic adjustment independent adjustment with hoses and quick connectors for direct connection to the hydraulic system the tractor • Very short construction for optimum manoeuvrability in tight turnaround • Revolutionary transmission system to better absorb loads when working and to protect the mechanical parts • Transmission through one central gearbox and two lateral gearboxes with counter-rotating cutter spindle rotors • Rubber safety device in line with the three gearboxes • Gearbox with integrated free wheel - adjustment 540 RPM (750/1000 RPM on request) • Front rollers and large rear roller, height adjustable for ease of sliding and manoeuvring • Adjustable track width (carriageway) of the front rollers • Frame of three-point linkage category 1 and 2 - FIXED CENTRAL with chain and connecting pins • Machine attached behind the tractor and used in trail (front mounting or for tractors with reverse drive on request - indicate RPM and direction of rotation PTO) • Safety-protections and “CE” certification For the operation of this machine, the tractor needs • TWO double acting hydraulic valves
