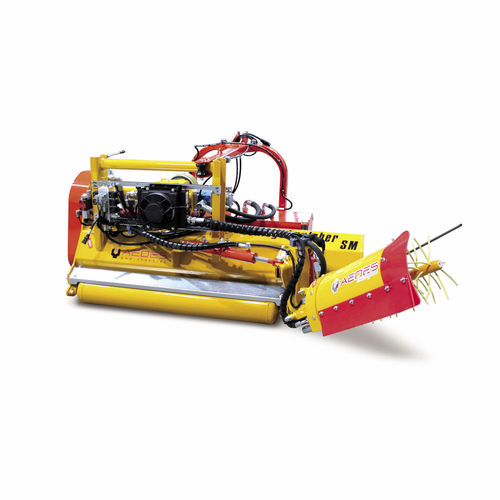

Arboriculture rotary cutter SM Series

vineyardfront-mountPTO-driven

Standard equipment and key features: Professional, robust and efficient flail mulcher with wires rotor AEDES “BioSystem” and automatic feeler for mechanical/ecological weeding in “ORGANIC” orchards and vineyards. STANDARD EQUIPMENT AND ADVANTAGES • Machine made with sheet metal casing of the highest quality, reinforced at critical points • Extended casing in front to prevent stones and cut material from being projected outward • Inter-row arm with wires rotor AEDES “BioSystem” unilateral/automatic feeler • Rotor with special wires (PU 6 mm - reinforced) • Hydraulic cylinder for tilt of the wires rotor • Transmission to the wires rotor by hydraulic motor • Electro-hydraulic automatic feeler with electrovalves, flow regulator, emergency button for manual interventions • Hydraulic cylinder (positioner) that opens/closes and adjusts the wires rotor • The machine is equipped with independent hydraulic system (pump, tank, hydraulic oil, electric oil cooler/radiator) • Gearbox with integrated free wheel - adjustment 540 RPM (750/1000 RPM on request) • Front rollers and large rear roller (Ø 170 mm) • Hydraulic side shift - LINEAR • Frame of three-point linkage CENTRAL category 1 (cat. 2 on request) with self-lubricating sliding blocks front side and small sliding wheels rear side • Third point with floating chain allow the machine to perfectly follow the ground • Cutting rotor with forged universal hammer made of special steel • Machine attached behind the tractor and used in trail (front mounting or for tractors with reverse drive on request) • Safety-protections and “CE” certification
