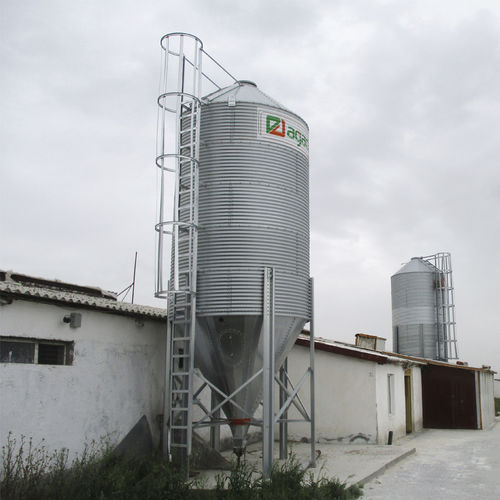

Animal feed silo Feed Silos

metalroundcone-bottom

Ağaçlı feed silos are conical based silos and have an economical and installation and maintenance friendly design for use in facilities such as farms and feed mills. The diameters of these silos vary from 1.83 m to 4.57 m while silo capacities range from 4.10 m3 to 163.34 m3 as per the requirement. In Ağaçlı Silo, we offer body and roof sheets with 600 gr/m2 galvanized coating for excellent resistance whereas the market norm for feed silos is 450 g/m2. This coating rate provides a better protection against potential damages from crops to be stored and endures for years with its maximum resistance against corrosion risks. Class 10.9, Geoment 500 A PLUS bolts and fasteners are used as Standard in our silos. Geoment is a coating type which is derived from mixture of zinc and aluminum and provides maximum resistance against corrosion. It is environmentally friendly and healthy as it does not contain chrome and heavy metals. Class 10.9 represents the tensile strength of steel of which bolts are made. Bolts in this class that have a high modulus of elasticity and rupture are much more resistant than the others. In the silo design, tops of the bolts used in lower conical structure have a round form, which prevents crop accumulation and wear in the inner part. There is a special hatch at lower conical sections for ease in cleaning and access in cases required. Besides, a special transparent window was designed for a smooth crop inspection and level check.
