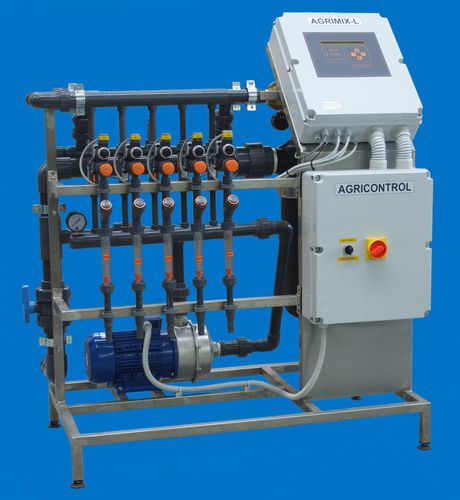

Automatic fertilizer injector AGRIMIX Series

The fertigation system AGRIMIX-L allows the automatic mixing from 2 (AGRIMIX-L2) to 6 (AGRIMIX-L6) mother solutions (A, B, C, D, E and F) and an acid solution for pH control, to form and distribute to the crop the desired fertilizing solution. The mixing is IN-PRESSURE, which means it works injecting A, B, C,..,F in a pressurized mixing tank, according to the recipe programmed by the user, that is in function of the relative parts of A, B, C,…, F and the electrical conductivity (EC) of the final solution. The AGRIMIX-L can have 16 (AGRIMIX-L/16) or 32 (AGRIMIX-L/32) or 48 (AGRIMIX-L/48) outputs for Irrigation/Fertigation Valves. The electrovalves can be grouped in 32 programs, or sequences, of 16 groups of valves. Each group can contain from 1 to 6 valves. The composition of the groups of valves in a program is free: you can choose the valves among all those that are connected to the Agrimix-L. An Irrigation Program can be activated in different ways : - at 5 different daily times; - cyclically with a constant programmable pause and a programmable number of activations; - cyclically, with variable pause between activations, in function of a solar radiation counter (solar integrator, see later); - by closing a contact by an external equipment, for example a X-WET-FDR controller. The AGRIMIX-L is delivered complete of EC, Ph and light sensors and the solar integrator are included in the standard unit. Optionally the System can be delivered with double EC and pH sensors: if the difference in the measurements made by the two sensors is higher than a programmable value, after a programmable time, the irrigation program proceeds distributing only clear water.
