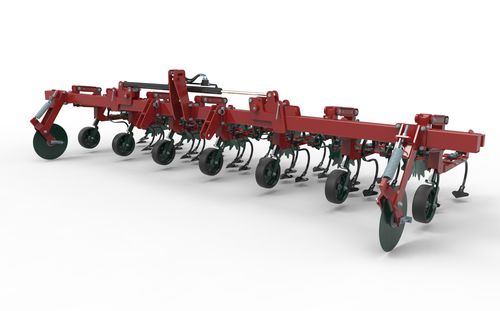

Mounted field cultivator UMK series

3-point hitchfoldingspring tine

HUDJIK cultivator with elastic S-tine and protective discs allows wide range and high working speed soil cultivation between rows. Cultivator construction provides high accuracy in following the rows both on and in the soil. Each S-tine working unit operates independently with its own wheel for maintaining of depth and parallelism providing the tip of the blade to operate at proper depth. With elastic S-tine weed is cut, extracted from the soil and dried soon after. At the same time the structure of the soil is not damaged, on a contrary it provides mixing and aeration of the soil. Leading discs with big diameter facilitate steering and maintain cultivation precision with uneven soil and while turning. Up to 55 cm width 3 springs operate in each row, above that width 5 springs operate at each parallelogram. For safe operation parallelograms are equipped with tapered roller bearings. Characteristics Types/subtypes of universal cultivator – UMK UMK-2 UMK-4 UMK-6 UMK-8 UMK-12 UMK-2K UMK-4K UMK-4R UMK-6K UMK-6R UMK-8K UMK- 8R UMK-12R Number of rows 2 4 6 8 12 Minimal tractor power (kW) 25 25 40 50 70 Working width – max (cm) 170 350 485 630 630 Approx. transport dimensions HxL (m) 1,55×1,7 1,55×3,2 1,55×3,2 1,55×3,2 1,55×3,2 Approx. weight (kg) 380 700 850 1020 1300 Transport width (cm) 170 320 320 320 320 Wings folding Mechanical –M Hydraulic-H and number of hydro cylinders (pcs.) – M/H (1 pcs.) H (1 pcs.) H (2 pcs.) H (2 pcs.) Leading discs (drawing wheel) and their number (pcs.) NO NO/YES (0/2 pcs.) YES (2 pcs.) YES (2 pcs.) YES (2 pcs.)
