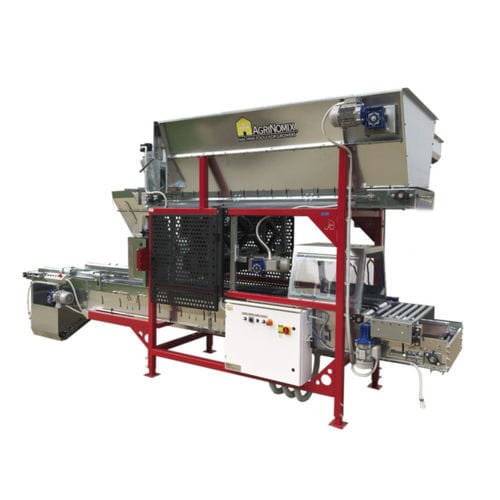

Automatic pot filling machine KV-XL

The KV-XL is the new standard for versatility and reliability in the industry. The design of this filler places the soil hopper directly over the filling belt ensuring even side-to-side container filling in a wide format and minimizes floor space usage. Direct drive gearboxes, inverter duty motors, sealed bearings, and heavy duty galvanized & powder coated steel construction provide for years of low maintenance operation. Superior soil return capacity is achieved by using a large powered roller out-feed area, three belt conveyors, and a short, level auger at the top, that moves the soil sideways back into the supply hopper. Easy to use crank adjustments enable quick changeovers from one container to the next. Capable of filling any style container up 22” wide and 17-1/2” high. The KV-XL is truly a flexible, reliable, and easy-to-use filler. Features: •Designed for use with Peat or Bark soil mixes •Variable speed soil and container conveyor belts •Individually adjustable compactor, roller and rotary brush •Swing open side access panels •Easy adjustments and container size change-overs •Controls ready for integration into production line Options: •Extended out-feed shroud w/ blow off •Powered out-feed roller assembly •Drill/Dibbler Unit Soil Capacity: 2 yds (Expandable to 4 yds) Max Container Height: 17.5″ Container Width: 4” – 22” Power Requirements: 220 VAC, 3 phase, 30 A Dimensions: •Overall: 203″ long x 70” wide x 106” high •Belt: 160.5” Drill Specs: •Max clearance: 10″ •Drill Bits: Up to 7″
