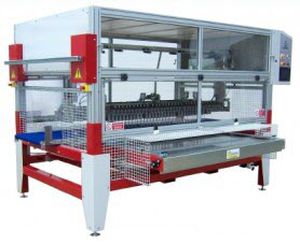

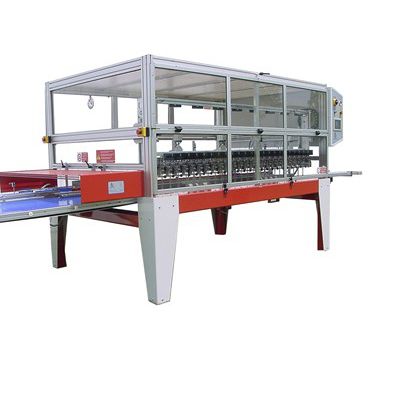

Tray transplanting machine RW2100

automatic

The RW Transplanter’s state of the art electronics and wireless technology are combined to dramatically improve flexibility, provide intuitive user interface touch screen functionality, and increase planting throughput. This innovative design allows plug tray and finish container changeovers to be accomplished in only a few minutes. Features: • Independent finger movement • Wireless communication • Up to 48 fingers • Max. finger spread 2100mm (81″). • Planting fingers pull from 2 plug trays at a time or a continuous row of CE trays (optional) • Pinching spade gripper design does not require push-up pins • User friendly graphical touchscreen control • Electronic planting depth and plug tray height adjustment Finish Containers: • Flats, shuttle trays, and individual pots 6″ in diameter and above Plug Trays: • From 512 to 50 cell trays Transplant Speed: • Up to 48,000 plugs/hour ** Electrical Requirements: • 230 VAC, 3 phase, 20 AMPS Air Requirements: • 6 CFM Example: rate depends on plug tray and finish container specs.
