In-line bale wrapper 1022,1025

roundautomatictowed

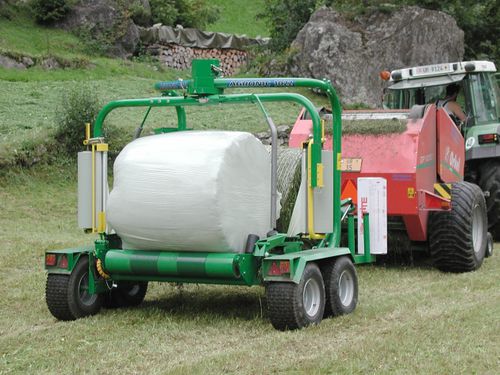

The AGRONIC 1022 with its twin arm 750mm pre-stretch units is designed with contractors and larger farming units in mind. The main advantage of this wrapper is in the design of the loading arm. When working directly behind the tractor, the wrapper is placed to one side. This means that the bale is picked up and dropped in the same direction as the baler. The whole wrapping sequence is worked and controlled automatically. As soon as the bale activates the loading sensor on the loading arm, the wrapping sequence starts. As the drawbar is hydraulic, it is extremely easy to line up the AGRONIC wrapper with the bale. Used “In Line”, the wrapper is automatically set to work by means of a sensor in the baler chamber door. Once the chamber door is closed the operator can drive on and bale the next bale. As the driver moves off the AGRONIC 1022 automatically picks up the bale, wraps it and then signals that it is ready to be unloaded. If one film roll runs out the wrapper stops and give the operator a choice to continue wrapping with only one roll, increasing the number of revolutions of the pre-stretch unit automatically, or to install a new roll. The unique scissors action cut and tie gather the film and hold it for the next bale. Once the bale is wrapped the next can be loaded onto the loading arm. The wrapped bale is gently unloaded by pressing a button on the control box. The next bale can then be wrapped automatically.
