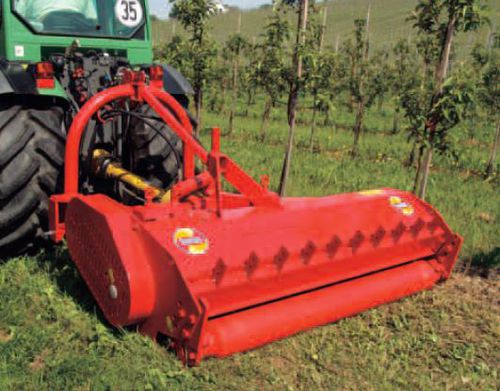

Rear-mount mulcher KM

flailforestryfor row crops

The KM flail mulcher is designed for universal use. The extremely flat design and the lowered drive are ideal for the use in fruit growing. The serial 3-point parallelogram sideshift adjustment with large setting range allows lateral extension at the tractor. A powerful model for mulching and shredding prunings. As the KM is mounted closely to the tractor, the weight distribution is advantageous and guarantees a good manoeuvrability. The mulched material is spread out evenly behind the rear roller. Basic equipment -High-quality angular gear:robust, flexible drive over enhanced V-belt on the rotor shaft, automatic belt tensioning -Self-cleaning roller with large spherical roller bearings,drive roll diameter 170 mm -Rear roller with slightly conical shaped ends for a smooth cornering -Cutting height adjustment on rear roller and top link,roller height-adjustable -Serrated knife in housing -Manual 3-point parallelogram-side adjustment / 40cm adjustment track -Rotor tube diameter 140 mm -Mounting and shredding device takes the scrub from the ground and accumulates it in the housing for extra shredding -Shredding of scrub:up to approx. Ø5cm “Y“-type blades or system flails up to approx. Ø 10 cm, club flails up to approx. Ø 5cm -Compact, solid and torsion-free steel sheet housing Special equipment -Swivel disc with motor
