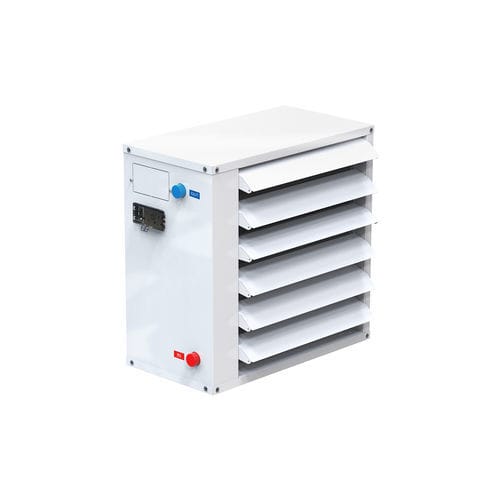

Water air heater BAS series

wall-mountedfarm building

Compact design heating unit for large industrial spaces such as: warehouses, logistics centres, trade fairs and congress halls... Or any other large and open plan location that requires hot air emitters. The Airtècnics fan heater is installed on the wall and it is made of galvanised steel with a white finish in the standard model, which can be customised with another colour from the RAL chart. This heater fulfils its function thanks to a water coil. The diffuser grille is made up of slats with a range of movement from 0º (no air will escape) to 70º. •Compact and functional fan heater designed for heating large spaces such as industrial buildings, factories, warehouses, workshops or venues •Self-supporting casing construction made of galvanised plated steel, finished in structural epoxy-polyester RAL 9016 as standard. Other colours or costumisation are available on request •Louvered diffuser adjustable from 0 to 70º •Wall mounting •High efficiency and low noise axial fan driven with external rotor motor, single phase 230V/50Hz. Optionally three phase 400V/50Hz •2 fan power are available •Water coil 2 or 3 rows (P86/P64) with male connections 2x½” •Different control options to fulfill any customer request: 5 ventilation speed, manual or automatic functioning, remote control, with telephone cable and fast connectors (Plug and Play), interface to connect to BMS, etc.
