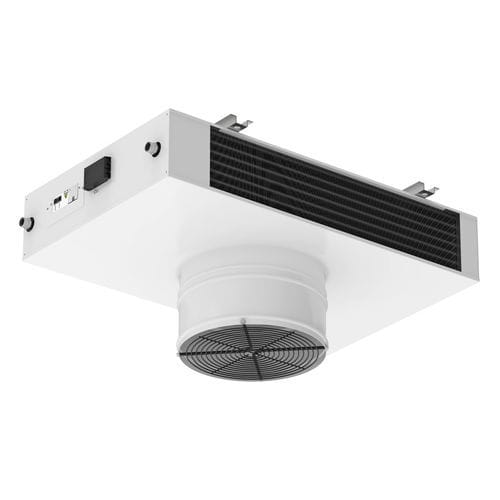

Water air heater HOR series

ceiling-mountedfarm building

Low-profile horizontal heater, for ceiling installation and intended for indoor use to heat warehouses, industrial buildings, garages, commercial premises, large trade fair, exhibition and congress venues and other similar large, open-plan spaces. The heating is provided by a water coil. The unit has a robust construction, made of galvanised sheet steel, standard finish in white and, on request, a wide range of colours from the RAL catalogue are available. This product complies with the requirements of the EU ErP 2015 Ecodesign Directive. •Sturdy and functional fan heater designed for heating large spaces such as industrial buildings, factories, warehouses, sports facilities, shops, parkings or venues •Self-supporting casing construction made of galvanised plated steel, finished in structural epoxy-polyester RAL 9016 as standard. Other colours are available on request •Supplied with round diffuser for large jet. Different tube heights to focus the air and meet client requirements •Mounted directly to the ceiling •High efficiency and low noise axial fan driven with external rotor motor, single phase 230V/50Hz. Optionally three phase 400V/50Hz •Water coil 2 or 3 rows (P86/P64) with male connections 2x½” •Different control options to fulfill any customer request: 5 ventilation speed, manual or automatic functioning, remote control, with telephone cable and fast connectors (Plug and Play), interface to connect to BMS, etc.
