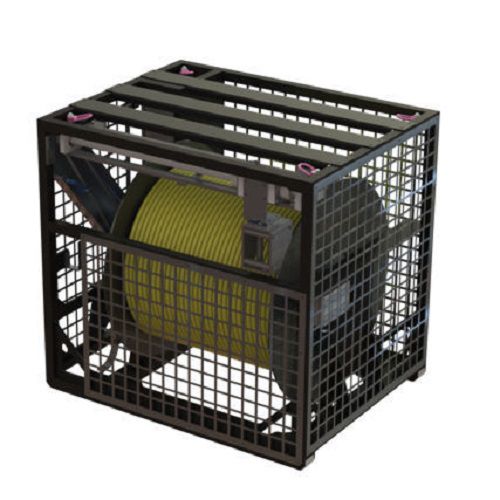

Cable winch 21/800

for aquaculture

■Easy to operate ■Robust design ■Require a minimum of maintenance ■Made in Norway Technical data Construction:All welded in anodized corrosion resistant aluminum, frame and cable drum Overall dimensions:Width 980 mm Height 1170 mm Length 1250 mm Drum dimension:Core length 750 mm Core diameter 400 mm Flange diameter 900 mm Cable capacity:800 meter of 21 mm cable Weight:206 kg. excl. cable Cable pull:Axial 208 Nm Inner layer 2700 N- calculated, 750 N w/clutch Outer layer 1350 N- calculated, 375N w/clutch Cable speed:Calculated average speed 35 m/min Spooling system:Stainless steel shaft, belt driven with release mechanism. Cable diameter adjustable from 1 mm to 25 mm in 50 steps Electric motor:1500W 3 phase, 1395 o/min. Electric input:Single phase 230 V AC 50 Hz. 16 A Controls:Frequency inverter, Manual control with 15 meters cable. Up, down and emergency stop. Potentiometer speed control. Slip ring:Focal 180 Brake:Automatic Temperature rating:-25°C to +65°C
