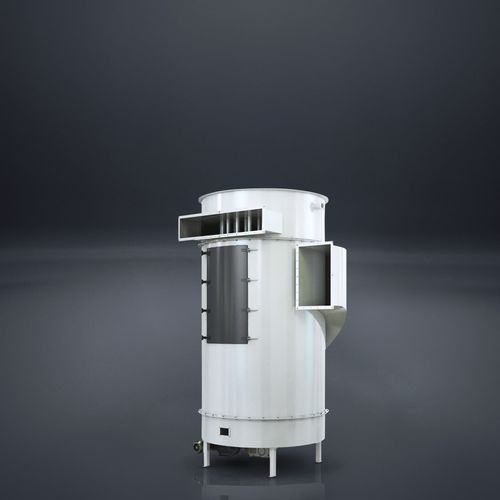

Air filter KFSI series

for dust collectorsfor silos

Suitable to separate dust and other particles suspended in air of cleaning department aspirator system before being discharged to the outside with a bottom scraper. Structure • Fabricated cylindrical sheet-metal structure with tangential inlet and wide inspection doors • Filtering sleeves supported by metallic circular cages with quick release clamps • Pneumatic low pressure sleeve cleaning system utilizes compressed air at 0,6 bar • Distribution group with solenoid valve to control rinsing valves E• lectronic equipment to position rotary manifold and program operation setting (rinsing time, pause, etc) • Flat bottom with scraper Effective Factors • The size of particles, paint pigments, pneumatic system of the mill, cleaning, aspiration • Physical composition of dust • Dust concentration in the untreated air (aspiration) • Electrostatic charge: • The given filter dimensions are taken into consideration in accordance with a 2.4 meter long bag. • The rate of flow changes depending on the rate of filtration area for other length of filter bags. • The air needed for cleaning and pneumatic control purposes of the Jet Plus Filter is supplied by a blower, which produces dry air • The air needed for cleaning and pneumatic control is obtained directly through a connection between the filter and the blower without using an air tank • The Jet Plus Filter is combined with a pneumatic control unit, which is actuated by an electronic control unit, quick ventilation valves (nozzles) and venture pipes
