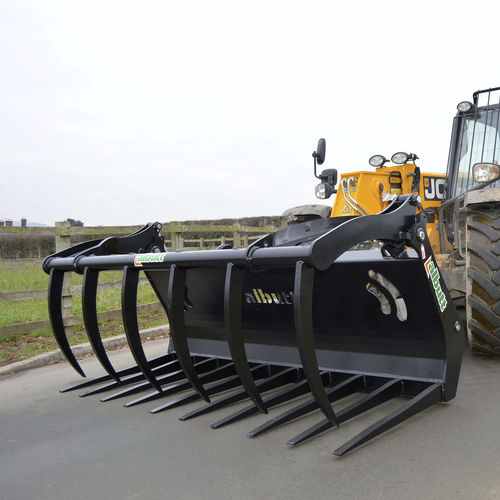

Silage fork C-Series

with hydraulic adjustment

For machines with a 2-4 tonne lift capacity KV type tines as standard. Add ‘HXG’ to any part no. for Hardox tines 35mm Ø top and bottom plated ram pins 45mm Ø pivot plated pins Heavy duty grab stops for ram seal and pin protection 75mm Ø bore rams Grab opens to 1480mm Base Tine length; Hardox 970mm / KV type 980mm DX bushes in cylinder ends Inward facing tees on rams Central ‘albutt’ visibility cut out Large side visibility cut outs Full width base wear strip Extra grab and base tine compared to industry standard
