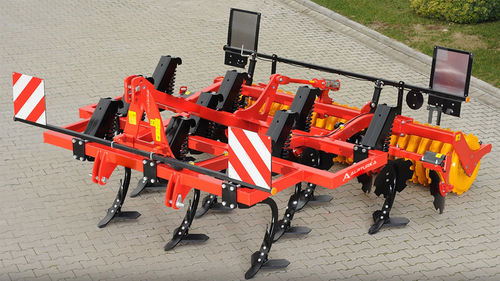

Towed field cultivator A

mountedwith hydraulic adjustment3-point hitch

Heavy Type Cultivator A is used for stubble breaking and seedbed preparation. It processes the soil by tearing it up to the desired depth without overturning it. The stubble is cut in layers from the root area and mixed well with the soil, and an organic fertilizer application is facilitated for the next crop period. Plant residues are ideally mixed into the soil. CHASSIS: Reinforced solid chassis, suitable for working in difficult conditions and providing ease of use with its simple and compact structure. The connection to the tractor is by a three-point hitch or trailer system, depending on the size of the machine and user preference. Transport System: The front drawbar and rear transport system, which can be easily installed on all models and convert your machine into a trailed type, are provided as standard for machines with 6 m and 8 m working widths and can be provided as an option on others. Easy turns are made possible with the drawbar, which has been designed for heavy conditions, and is capable of moving 20 degrees vertically and 60 degrees horizontally. TINES: The tines are made of the strongest material and strongly welded. With the strongest 25° blade cutting soil penetration angle at the front, 12 mm blade thickness. LEVELING DISCS: 46 discs used at the rear, optional disc diameters of 51 and 56 cm, disc thickness of 4 mm, disc spacing of 24.5 cm. ROLLER: Seven different roller options are available, depending on user preference. It can optionally be folded into the road position hydraulically. ADVANTAGES: Powerful and Compact Design : A simple design that ensures ease of use, and a reinforced chassis suitable for use in difficult conditions.
