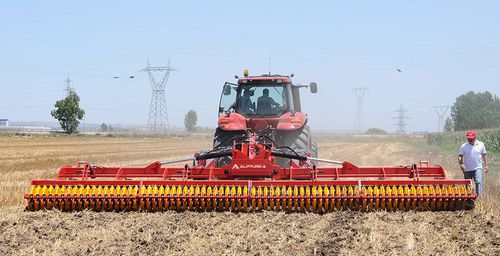

Towed disc harrow Aragon

mounted2-sectionwith hydraulic adjustment

Disc harrow A Type, which has an effective and wide usage area in soil cultivation, especially in stubble processing and seedbed preparation, allows plant residues to be broken down and mixed into the soil without overturning the soil. Efficient farming is thus supported through effective cultivation and the maintenance of the biological balance of the soil. It is suitable for use in heavy and difficult conditions. CHASSIS: Reinforced solid chassis, suitable for working in difficult conditions and providing ease of use with its simple and compact structure. The connection to the tractor is by a three-point hitch or trailer system, depending on the size of the machine and user preference. In models with a large working width, the chassis is folded into the road position hydraulically. DISCS: 51 and 56 cm optional disc diameters, vertical position angle 11 °, horizontal direction angle 18, disc thickness 4/6 mm, disc distance 24 cm. Each disc arm is connected independently. ROLLER: Seven different roller options are available, depending on user preference. It can optionally be folded into the road position hydraulically. ADVANTAGES: Powerful and Compact Design : A simple design that ensures ease of use, and a reinforced chassis suitable for use in difficult conditions. Combined Design : After cultivating the soil efficiently with specially produced discs, a perfect surface is obtained through soil breaking, compacting, and leveling operations using different types of rollers. Minimum Time, Maximum Efficiency : Maximum efficiency is achieved due to the 10-15 km/h operating speed.
