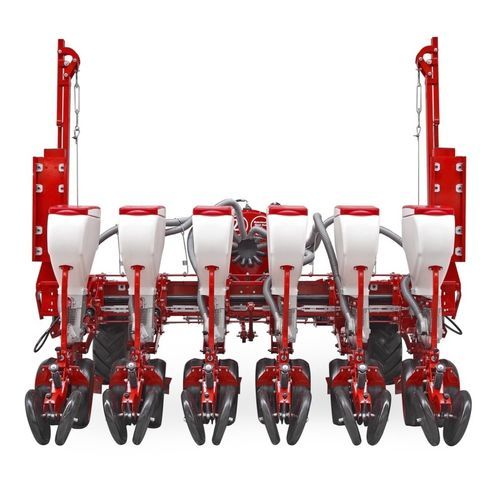

Pneumatic seed drill SD-PNHS seriesdisc12-row6-rows
Add to favorites
Compare this product
Characteristics
- Seed distribution
- pneumatic
- Type
- disc
- Number of rows
- 12-row, 6-rows, 8-row
- Type of plantation
- for corn, for sunflowers, for cotton
- Other characteristics
- with fertilizer applicator, folding, onion
- Working width
Max.: 600 cm
(236.22 in)Min.: 310 cm
(122.05 in)- Inter-row spacing
Max.: 70 cm
(27.6 in)Min.: 45 cm
(17.7 in)- Power required
Max.: 150 ch
(150 hp)Min.: 100 ch
(100 hp)- Weight
Max.: 2,500 kg
(5,511.6 lb)Min.: 1,490 kg
(3,284.9 lb)- Seed hopper volume
180 l, 240 l, 280 l, 360 l, 420 l
(47.6 gal, 63.4 gal, 74 gal, 95.1 gal, 111 gal)- Fertilizer hopper volume
160 l, 400 l
(42.3 gal, 105.7 gal)
Description
The Hydraulic Shifting Pneumatic Planter is equipped with a foldable and telescopic frame up to 8 rows with variable inter-row spacing. Available with high capacity hopper.
With Ahtapot folding system upto 12 rows with vatiable inter-row spacing can be manufactured.
STANDARD FEATURES;
Sowing Unit: Model with front pressing wheel for small seeds (beet, onion etc.)
Sowing Unit: Model for coarse seeds (corn, sunflower, cotton, bean etc.)
Sowing Unit: The seed bed is able to quickly and easy to open with the discs, disc sowing unit is compatible for semicultivated soils.
OPTIONAL;
Disc type fertilizer foot. It is optionally produced for more efficient fertilizing application.
Hydraulic marker system: Provides each marker arm moving independently.
Star shaped trash remover is fixed in front of the sowing unit for cleaning trashes on the sowing bed.
Electronic control monitor: Electronic seed flow control device.
