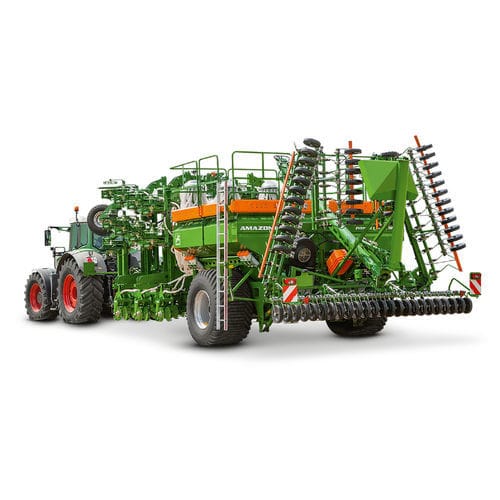

Pneumatic direct seed drill PRIMERA DMC series
towedwith fertilizer applicatorfolding

pneumatic direct seed drill
pneumatic direct seed drill
pneumatic direct seed drill
pneumatic direct seed drill
pneumatic direct seed drill
pneumatic direct seed drill
pneumatic direct seed drill
pneumatic direct seed drill
pneumatic direct seed drill
pneumatic direct seed drill
pneumatic direct seed drill
pneumatic direct seed drill
pneumatic direct seed drill
pneumatic direct seed drill
pneumatic direct seed drill
pneumatic direct seed drill
pneumatic direct seed drill
pneumatic direct seed drill
pneumatic direct seed drill
pneumatic direct seed drill
pneumatic direct seed drill
Add to favorites
Compare this product


Characteristics

Seed distribution
pneumatic
Other characteristics
towed, with fertilizer applicator, folding, depth control, cultivator-mounted, with harrow
Working width

3 m, 4.5 m, 6 m, 9 m, 12 m
(9'10" , 14'09" , 19'08" , 29'06" , 39'04" )

Inter-row spacing

18.8 cm, 25 cm
(7.4 in, 9.8 in)

Power required

Max.: 380 ch
(380 hp)

Min.: 80 ch
(80 hp)

Working speed

Max.: 18 km/h
(11.2 mph)

Min.: 10 km/h
(6.2 mph)

Weight

Max.: 15,000 kg
(33,069.3 lb)

Min.: 4,800 kg
(10,582.2 lb)

Seed hopper volume

Max.: 8,400 l
(2,219 gal)

Min.: 4,200 l
(1,109.5 gal)

Description

With the new generation of Primera DMC seed drills – in 3 m, 4.5 m, 6 m, 9 m or 12 m working widths – AMAZONE is offering an outstanding machine for cost-effective crop establishment over large areas. This versatile large area seed drill, in combination with the chisel openers which have been tried and tested 100,000 times over, is used with great success for conventional, mulch and direct sowing. Product overview Your benefits at a glance -Universal seed drill for conventional, mulch and direct sowing -Intelligent hopper and seed conveying concept for the flexible application of seed and fertiliser -Large hopper capacity of up to 13,000 l for high outputs -Easy filling thanks to the large hopper opening – high performance filling augers are available as an option -Optimum field emergence due to the exact depth control and clean furrow clearance by the chisel openers -Little soil movement due to the narrow chisel opener – reducing the evaporation losses and making the machine easy to pull -Maintenance-free bearings on the depth guidance rollers -Easy operation and control via ISOBUS (optional) -Easy adjustment of the seed rate, also automatically during operation, in conjunction with the electric metering drive -Thanks to the TwinTerminal, easy calibration down at the machine is possible
