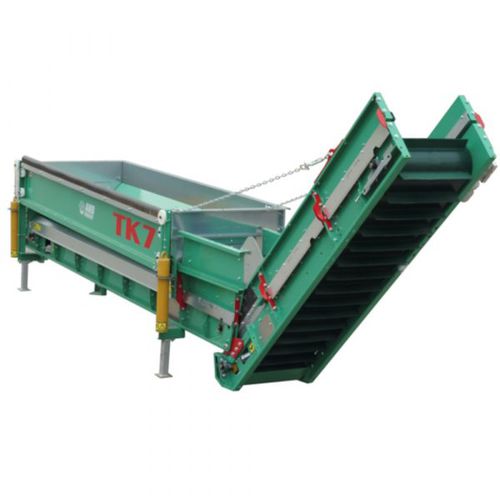

Apple receiving hopper TK6-TK7walnut
Add to favorites
Compare this product
Characteristics
- Crop type
- apple, walnut
Description
- Very robust, welded and painted chassis.
- Mounted on 4 self-aligning bearings
- Three-phase gear motor with variable speed drive (0,55 Kw)
Fonctionnement
- 4 m belt hopper.
- PVC conveyor belt width 500 mm with PVC cleats (pitch: 1870 mm, height: 8 mm).
- Adjustment of the belt tension.
- Adjustment of the belt speed by mechanical variator.
- The 2.92 m wide hopper allows the emptying of trailers.
- Fixed flat iron grid on field.
Elevator (optional)
- Length: on request.
- Width : 500 mm.
- PVC conveyor belt width 480 mm. With PVC cleats (pitch: 150 mm, height: 60 mm).
Weight and dimensions
- Length : total : 4,150 m - width : 2,92 m
- Width : 1,09 m
- Height : from 0,60 to 0,90 m
- Weight : 530 kg
Catalogs
TK6-TK7
2 Pages
