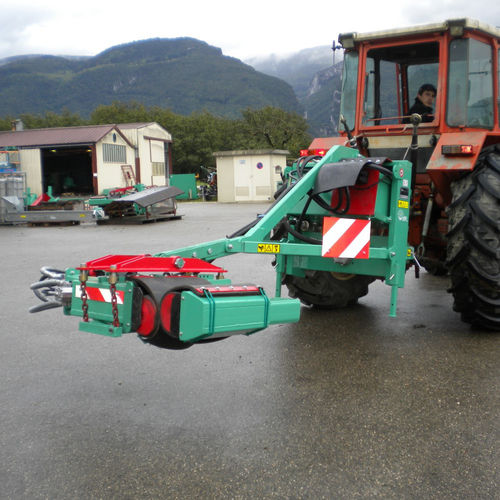

Olive tree shaker VHO series

nutsmountedhydraulic

We have developed a range of hydraulic vibrators specific to olives allowing to shake up to 30 trees per hour. Their specific arm allows to take the trunks at 50 cm from the ground. – the VHB is the cheapest of the range: the PTO must be engaged at each tree – the VHD is equipped with a manual distributor allowing the opening, closing and vibration of the clamp – the VHE is equipped with a joystick in the driver’s cabin allowing the opening, closing and vibration of the clamp. – Thanks to its star-shaped vibration movement of very low amplitude, the vibrating head respects trees and their roots perfectly – Possibility to vibrate young trees – Quick assembly/disassembly of the vibrator on the tractor – Output per hour: 25 trees for VHB / 30 trees for VHD and E – Clamping of trunks up to 1.88 m in circumference (Ø 600 mm) – Star vibration – All movements are hydraulic – The masses are driven by two hydraulic motors, which give a great dynamism at start-up – Minimum tractor power required: 50 HP – for trunks from 0.50 m to 1 m high – PTO clutch on each shaft for VHB – opening, closing and vibration of the clamp are done by a 2 elements distributor for VHD – The opening, closing and vibration of the clamp are carried out by a control lever placed in the driver’s cab of the tractor for VHE
