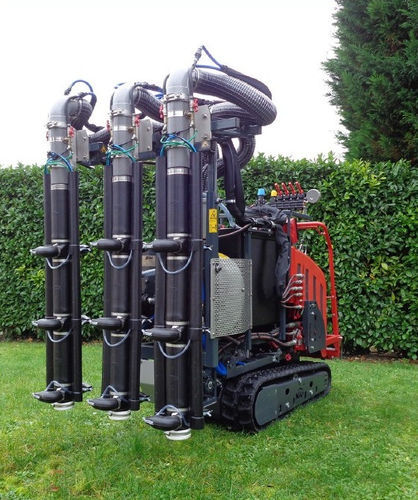

Self-propelled sprayer DLEVO2/D

for viticulturehydraulictracked

Amos is to develop a new treatment cell «DL» able to be mounted and driven on a chase of a power of 40 hp. The latter was thought to fully meet the needs of our customers anxious to get optimum protection from the vine. Its low weight, the double helix of training, its 250km / h at the exit of the hands, maneuverability, easy adjustment following types of vines. Features : Processing Unit DL 3 Rows mounting chase 40 HY seating , including: Piece steel frame painted with quick hitch Turbine ventilation centrifugal clutch with a 10 hp maximum power consumption Pump flow 34l/min sulfated 3 pistons with valve 15bar security Hydraulic drive the turbine and pump sulfater 38l/min flow Ramp Variable geometry with 3 soft descents TB ( ref. unit = 1311128420/2016) + 6 outputs heights diffuser fins adjustable and obstructable Hydraulic and independent adjustment of the left and right slopes for a working width of 0.90m to 1.30m Total lift ramp 40cm requiring a double effect Folding ramp D / G requiring two double effects Group cuts sections with general electric valve safety valve + pressure + 4 valves with offset sections to cut back the outer rows ½ right and left 180L capacity polyethylene tank with agitation calibrated feedback device and a remote drain on tank 3L tank washing hands Stand on quick release wheels, adjustable height.
