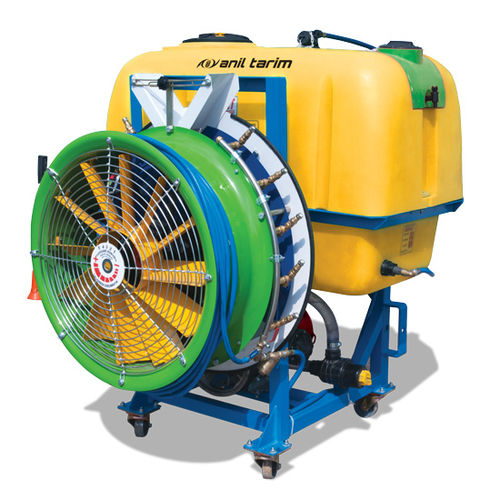

Mounted agricultural atomizer AT-SF Series

for arboriculturehydraulicpneumatic

Strengthened Fiberglas or Polyethylene depot with clean water Optional three and four membrane pumps are operated by power takeoff from tractor conveys pressuring chemical liquid to nozzles on fan. Fan is also operated with power take off and it sends pressured air out. Pressured chemical liquid is sprayed by adjustable nozzles around the fan by air circulation and any kind of tree can be disinfected. Fans are operated by two speed transmission. Also there is a V-belt pulley model with one speed. General Characteristics • Easily adjustable and user friendly, • High efficiency, • Polyester tank, • Turbo fan case is made of ni-cr stainless steel or galvanized. • Angle adjustable, high flowrate fan, • Easily cleanable water filter, • Optional auxiliary clean water tank, • Homogeneous mixing of water and pesticide at hydraulic mixer, • Pressure regulation, • Quick filling of pesticide at 30 bar high pressure, • Easily mountable on 3-pt of tractors, • Discharge beam lenght of spray can be adjusted at the nozzle, • Level indicator on the tank, • Fun hub and blades are made of hard plastic, • Turbo mechanism is driven by belt-pulley mounted to pump output shaft.
