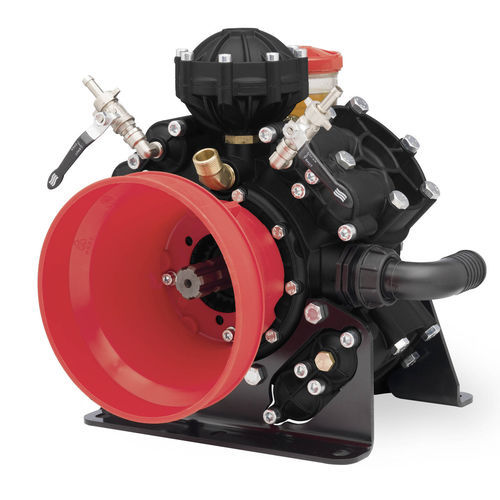

Irrigation pump AR 1604 AP BlueFlex™ C/Cdiaphragmhigh-pressure
Add to favorites
Compare this product
Characteristics
- Application
- irrigation
- Other characteristics
- diaphragm, high-pressure
- Flow
153 l/min
(40.41832 us gal/min)- Pressure
50 bar
(725.19 psi)- Power
18.6 ch
(18.6 hp)
Description
Semi-hydraulic four-diaphragm pump. Parts in contact with pumped liquids in anodized cataphoresis coated aluminium and AISI 303/304. Diaphragms in NBR, Desmopan, Viton or BlueFlex™. Seals in NBR. Metal fasteners with galvanised finish. Plug for drainage of liquid from the circuit before winter storage. Complete with safety valve with re-arm, air chamber and cardan protection.
Technical specifications
Version - AP C/SP
Diaphragms - 4
Max flow (gpm) - 40.4
Max Pressure (psi) - 725
RPM - 550
Net weight (Kg) - 38
Size (mm) - L - 432
Size (mm) - H - 413
Size (mm) - W - 512.5
Suction (mm) -
Outlet (mm) -
Max temperature (°C) - 60
