LED light indicator Q16 series

whiteblueyellow

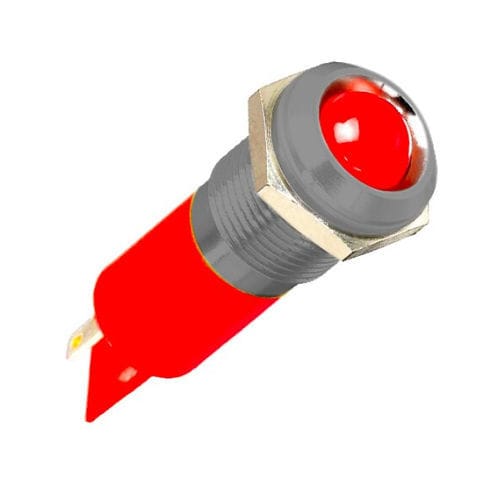

Introducing the Q16P1GXXR220E, the LED Indicator that combines technical superiority with sleek design. With a 16mm Mounting Hole, it is easy to install and fits seamlessly into any application. The Prominent Bezel Style adds a touch of sophistication to your project. The Solder Lug Fastons 28 x 08 Terminals ensure secure connections. The Satin Grey Bezel Finish exudes elegance. Enjoy the Fixed LightKK Type of Illumination that provides a steady light source. The Red LED Color adds a vibrant touch to your display. Powered by a reliable 220 VAC Voltage, this indicator is built to last. With an IP67 Sealing, it is protected against dust and water. Get the Q16P1GXXR220E LED Indicator today and elevate your project to new heights! Specifications Distinctive Features: • Secret until lit polycarbonate decals or custom engraving • 10 mm colored diffused epoxy lens or 10 mm water clear • super bright LEDs • (2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long) • wire terminations General Specifications: • Max Reverse Voltage: 5 V • Viewing Angle: 30–100° * • Life Expectancy: 100,000 hours • Torque: 75cNm Environmental Specifications: • Panel sealed up to IP67 according to EN 60529 • Temperature Range: –40 to +85 °C * Electrical Specifications: • 02 (No Resistor) 1.8 to 3.3VDC 20 mA max* • 6 VDC 5.4 to 6.6 VDC 20 mA • 12 VDC 10.8 to 13.2 VDC 20 mA • 24 VDC 21.6 to 26.4 VDC 20 mA • 28 VDC 25.2 to 30.8 VDC 20 mA • 110 VAC 99 to 121 VAC 6 mA • 220 VAC 207 to 235 VAC 3 mA
