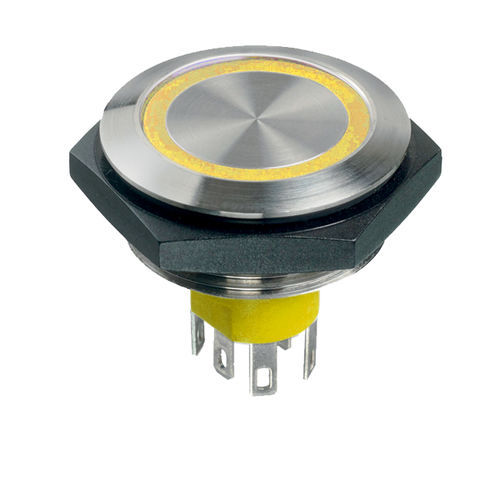

Push-button switch AV55022000074BK

IP67IP65with LED

The AV Series pushbuttons offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing and actuator materials Specifications Distinctive Features: • Large mushroom head actuator • Momentary NC+NO • Anodized actuators • Long life General Specifications: • Torque : 1.5 Nm min.- 4 Nm max. applied to nut • Panel thickness : 1 (.039) to 6 mm (.236) max. • Low level or mechanical life : 1,000,000 cycles • Hand soldering : 300 °C, 5 sec. max. • Panel cut-out : Ø 22.2 mm (.874) • Min. pitch for matrix mounting : 30 mm x 30 mm (1.181x1.181) Electrical Specifications: • Max. current/voltage rating with resistive load : 5 A 250 VAC • Initial contact resistance : 100 mΩ max. • Insulation resistance : 1,000 MΩ min. at 500 VDC • Dielectric strength : 2,000 Vrms 50 Hz min. between terminals and frame • Electrical life : 1,000,000 cycles at 1 A 250 VAC 50,000 cycles at full load Materials: • Case : polyester, glass filled • Contacts : silver/nickel alloy • Bushing : brass, nickel plated • Actuator : aluminium, anodized
