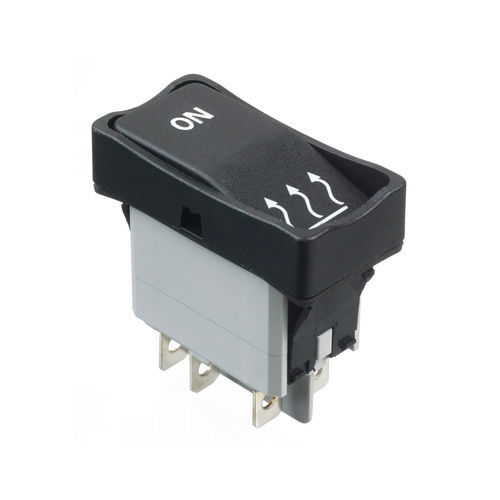

Rocker switch KG312A2XXA21XX

IP65

The KG312A2XXA21XX Panel Switch is a versatile electrical device designed to offer reliable and efficient electrical functions. With its sleek design and easy-to-use rocker mechanism, this switch allows for quick and convenient ON and OFF functions. It features high-quality silver grain contacts that ensure a stable and durable connection for your electrical circuits. KEY FEATURES • Series: KG • Lamp Wiring: A • Electrical Functions: ON - OFF • Poles: Single pole • Side A Lamps: Without LED • Bezel: Black, sealed to IP65 • Side A Lens Color: No lens • Contacts: Silver grain • Side B Lamps: Without LED Specifications Distinctive Features: • Protected rocker • Illuminated or non-illuminated • Sealed to IP65 General Specifications: • Mechanical life : 2 position models : 100,000 cycles min.3 position models : 30,000 cycles min. Environmental Specifications: • Degree of protection : IP65 according to IEC 60529 • Shock resistance : 100 g according to IEC 512-4, test 6c • Vibration resistance : 10-500 Hz - 10 g according to IEC 512-4, test 6d • Salt spray resistance : 96 hours according to IEC 512-6, test 11f • Operating temperature : 2 position models : -40 °C to + 85 °C3 position models : -10 °C to + 65 °C Electrical Specifications: • Currrent/voltage rating :- functions 1 (ON-OFF) and 6 (ON-ON) : 15 A 12 VDC, 10 A 24 VDC max.,10 mA 14 VDC min.- functions 4 ( ON ON ON) and 4-1R (ON ON MOM) :8 A 12 VDC, 5 A 24 VDC max.- other functions : 10 A 12 VDC, 8 A 24 VDC max. • Initial contact resistance : 10 mΩ max. at 1 A 2 VDC • Insulation resistance : 1,000 MΩ min. at 500 VDC • Dielectric strength : 2,000 Vrms 50 Hz min. between terminals • Electrical life : 10,000 cycles min.
