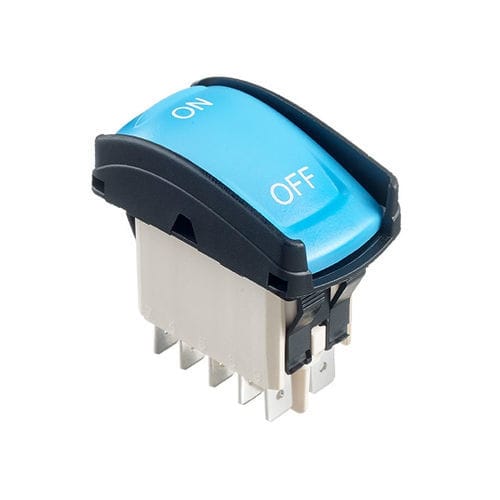

Rocker switch KH135FAZXKG

with LED

Our KH135FAZXKG Panel Switch is a versatile and reliable solution for controlling electrical functions. With its sleek design and durable construction, it belongs to the Rocker Switches category. Its Part Number is KH135FAZXKG. It offers a convenient MOM ON function, allowing users to easily turn on and off various electrical devices. The contacts of this switch are made of silver, ensuring excellent conductivity and long-lasting performance. Choose the KH135FAZXKG Panel Switch for efficient and precise control over your electrical systems. Specifications Distinctive Features: • Protected against accidental actuation • Wide choice of colors • Laser etched or pad printed symbols • Illuminated or non-illuminated • Sealed to IP69K General Specifications: • Mechanical life :150,000 cycles min. • Panel thickness : 0.8 mm to 4.6 mm • Recommended panel thickness : between 2 mm and 3.5 mm Environmental Specifications: • Front panel sealing : IP69K according to DIN 40050-9 • Salt spray resistance : 96 hours according to IEC 512-6, test 11f • Vibration resistance : 10-500 Hz / 10 g per IEC 60068-2-6 Electrical Specifications: • Currrent/voltage rating with resistive load :- Silver plated contacts (A) : 5 A 24 VDC, 100,000 cycles10 A 24 VDC, 10,000 cycles (terminals 6.35 x 0.8 only)- Gold plated contacts (D) : 20 mA 12 V, 150,000 cycles • Current/voltage rating with lamp load - silver contacts (A) :- function 6 : 100 W 24 VDC, 10,000 cycles- other functions : 60 W 24 VDC, 10,000 cycles • Initial contact resistance : 10 mΩ max. • Insulation resistance : 1.000 MΩ min. at 500 VDC • Dielectric strength : 2,000 Vrms 50 Hz min. between terminals
