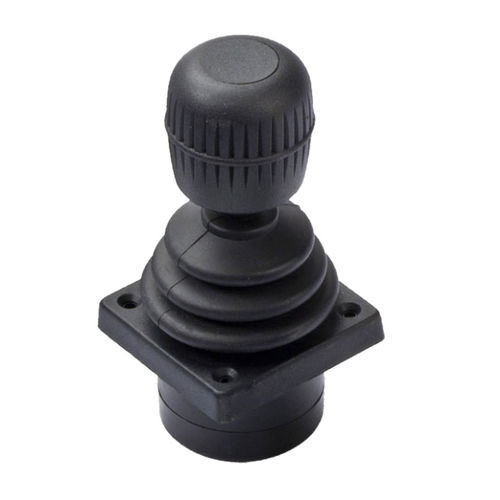

Finger operated joystick 3125SAL600

contactlessHall effect

The 3000 Series is the very latest generation in high precision contactless joysticks Specifications Distinctive Features: • One, two or three axis • Analog or PWM outputs • Low profile less than 20 mm below panel depth • 5 V or 3.3 V operation • Metal mechanism General Specifications: • Life Cycles: 10,000,000 cycles (5,000,000 for 3 axis joysticks) • Seal Above Panel: IP65 (dependant on configuration) Environmental Specifications: • Operating Temperature: -25ºC to 70ºC (-13ºF to 158ºF) • Storage Temperature: -40ºC to 70ºC (-40ºF to 158ºF) • EMC Emission: Complies with EN 61000-6-3:2001, CISPR 22:2005, Class B 30MHz–11GHz • ESD: Complies with EN61000-4-2 (extended) ±8KV (20 contacts) & ±15KV (20 air discharges) • EMC Immunity: 100V/m, 80MHz-2.7GHz, 1KHz 80% sine wave modulation, EN 61000-4-3 (extended) • Vibration: 100Hz – 200Hz @ 0.13g /Hz, total 3.6gRMS (1 Hour in each of the three mutually perpendicular axis) Electrical Specifications: • Gain (Output Voltage Span): ±10% x V to ±50% x V • Output at Center: V/2 ±(5% x Gain) • Power Supply: 5V ±0.5V Transient free (Configs 1, 3, 4 & 5) or 3.3V ±0.1V (Config 2) • Center Tap Impedance: 1K1 • Center Detect Output: Pulled high within joystick via 2K2 to +V, and smoothed to 0V with 100nF • Sensor Type: Hall effect • Analog PWM CAN J1939 & CANopen outputs • Current Consumption: 5V <13mA (Two axis) <20mA (Three axis) 3.3V <24mA (Two axis) <40mA (Three axis) • Loads: Minimum 10K, preferred 100K+ Materials: • Shaft - Stainless Steel • Boot - Neoprene • Others - Brass, Nylon, ABS Mechanical Specifications: • Weight: 100g (0.20lb) nominal • Breakout Force: 1.3N (2.86lbf)
