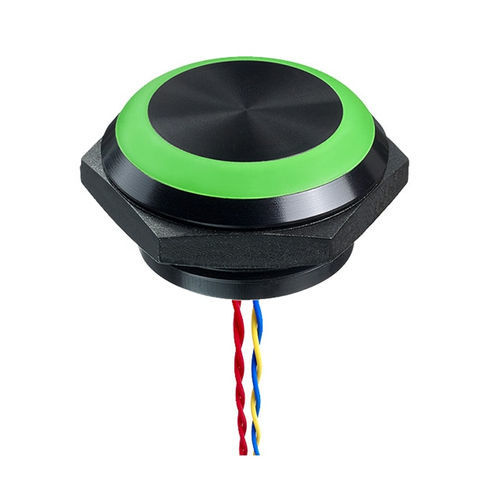

Push-button switch PBAM1AF0002

for lightingIP68

The PBAM1AF0002 Panel Switch is a versatile and reliable solution for your electrical needs. With its wide range of electrical functions, this switch is perfect for any application. From controlling lights to activating motors, this switch can handle it all. Its durable construction ensures long-lasting performance, making it a reliable choice for both commercial and residential settings. The PBAM1AF0002 is equipped with flying leads, making installation quick and easy. Upgrade your electrical system with the PBAM1AF0002 Panel Switch and experience its seamless functionality. Specifications Distinctive Features: • Bushing diameter 16 (.630), 19 (.748), 22 (.866) or 30 mm (1.181) • Sealed to IP68 and IP69K (switches mounted on panel) • Easy to clean metal surface • Very long life expectancy • Ring illumination: flush or prominent ring General Specifications: • Operating force : 6 to 12 N • Torque : 1.5 Nm min. - 10 Nm max Environmental Specifications: • Sealing : IP68 per IEC 60529, IP69K per DIN 40050-9 (switches mounted on panel) Electrical Specifications: • Max. current/voltage rating with resistive load : 1 A 24 VAC/DC • Switch resistance ON : 10 Ω max. • Switch resistance OFF : 5 MΩ min. • Life expectancy : 50 million cycles • LED consumption : 20 mA
