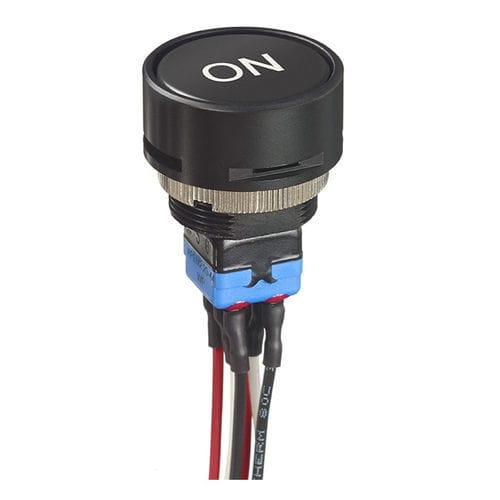

Push-button switch WPS456G

for lightingIP67

The WPS456G Panel Switch, with its sleek design and impressive functionality, is a must-have for any electrical project. With its double pole configuration, it provides a reliable and robust solution for your wiring needs. Whether you need to control lighting, motors, or other electrical equipment, the WPS456G is up to the task. Its ON MOM electrical function ensures quick and convenient operation, making it ideal for both residential and commercial applications. Upgrade your electrical system with the WPS456G Panel Switch and experience seamless control at your fingertips. Specifications Distinctive Features: • Military application and harsh environments • Easy to integrate • Excellent front panel sealing General Specifications: • Torque : 1.25Nm (.922 FT.lb) max applied to nut • Standard panel thickness : 2 mm (.078) max • Total travel : 2 mm (.078) Environmental Specifications: • Front Panel sealing: IP67 and IP69K according to DIN 40050-9 Electrical Specifications: • Max. Voltage rating with resistive load : 28VDC • Max. current rating with resistive load : 4A • Initial contact resistance : 10mΩ max • Insulation resistance : 1000MΩ min at 500VDC • Dielectrical strength : - 1000Vrms 50Hz min. between terminals- 2000Vrms 50Hz min between poles- 2000Vrms 50Hz min. between terminals and frame • Contact bounce : 2ms max • Electrical life - Silver contacts (4A 30VDC): 50 000 cycles
