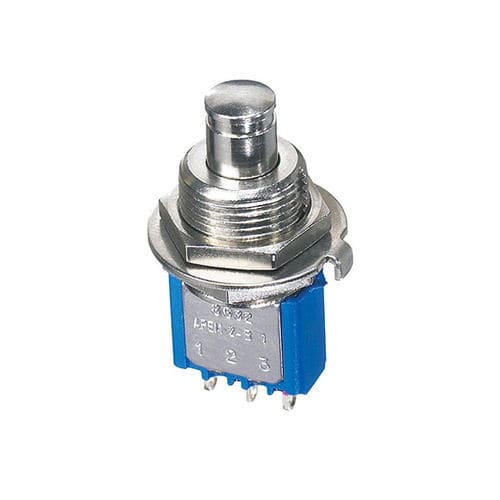

Push-button switch 8436AX748ULU900

Momentary or alternate action pushbutton switches. Button returns in upper position after actuation KEY FEATURES • Series: 8 • Contact materials: Silver • Number of poles: Single pole • Electrical functions: ON • Terminals: Solder lugs or straight PC depending on model • Caps: Ø 5 (.196) • Special options: Snap-in mounting. Consult factory. • Terminals and bushings: Straight PC or right angle terminals • Plungers: Height 6.3 (.248) • Approval: Consult factory for details of approved models • Sealing: No sealing Specifications General Specifications: • Torque : 1.25 Nm (.922 Ft.lb) max. applied to nut • Total travel : 2.70 mm (.106) • Electrical Specifications: • Max. current/voltage rating with resistive load :- silver contacts : 4 A 30 VDC- gold plated contacts : 0.4 VA max. 20 VAC or DC • Initial contact resistance : 10 mΩ max. • Insulation resistance : 1,000 MΩ min. at 500 VDC • Dielectric strength :- 1,000 Vrms 50 Hz min. between terminals- 2,000 Vrms 50 Hz min. between terminals and frame • Electrical life : 30,000 cycles at full load Materials: • Case : diallylphthalate (DAP) • Actuator : brass, nickel plated • Bushing : brass, nickel plated • Housing : stainless steel • ContactsA : silverAD : silver, gold platedCD : brass, gold plated • Terminal seal : epoxy
