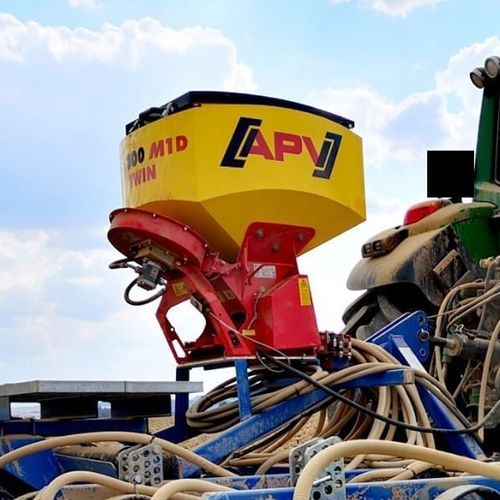

Seed drill-mounted fertilizer spreader PS 300 M1 D TWIN

solid

The PS 300 M1 D TWIN allows to spread two entirely different seed types/seeds with one implement. The hopper is divided in the middle by a partition wall. The Control Box 5.7 controls each seeding shaft side separately, which means the spread rate is kept constant. Functional Principle The 300 l hopper is divided into two chambers with a volume of 150 litres each by a centre partition. The PS includes a divided meter roll powered by two independent motors. It is possible to equip one half of the meter roll with fine metering cartridges and the other one with coarse metering cartridges. As a result, two different seed sizes in different quantities can be applied precisely at the same time. With the air flaps, it is possible to adapt the air quantity to the different seeds. Control Box 5.7 enables the user to control each half of the meter roll separately. Therefore, a calibration test is possible for each half of the meter roll. An additional function is the use of two fill level sensors in order to recognise which hopper side is empty. EXACT •Completely non-corrosive (CDP coating) as Pneumatic Seeders of the Fertiliser Edition •Better overall sealing than PS Standard •Divided steel hopper •Divided seeding shaft with one gearbox motor each
