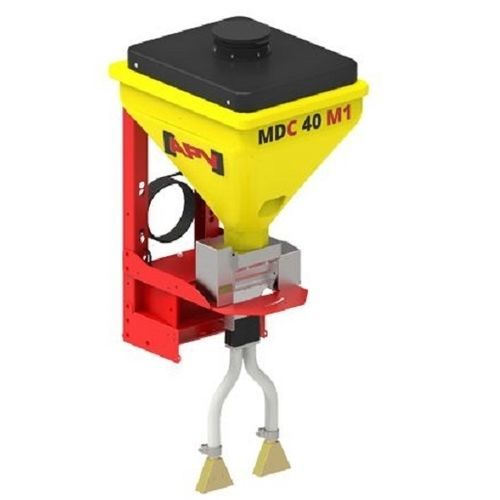

Seed drill-mounted fertilizer spreader MDC 40 M1

solidwith metering system

The Multi-Metering System MDC 40 M1 is a special version of the MDG 40 M1. It is especially sealed and its concept is perfectly well suited for granules (e.g.: Vydate, Belem, Goldor Bait, Attracap, Mocap, etc.) that can only be spread in 2 rows without air support. Due to the pre-installed sure-fill adapter, you do not get in contact with the substances during filling. The granules are reliably metered via our tried and tested seeding shaft. Via two hoses, the substance reaches the fishtail coulters directly, which then safely place the granules in row with great precision. EXACT •Sealed spreader for the secure spreading of your granulated pesticides •Precise lateral distribution due to individual seeding shafts for each outlet •Approved by the JKI Institute! VERSATILE •Compact and versatile metering unit •Quantity adjustment while driving •Possibility of installing speed and lifting unit sensors1 (optional) •Possibility of installing a fill level sensor1 (optional) and a calibration button2 (optional) •Control box with power connection using 3-pin socket
