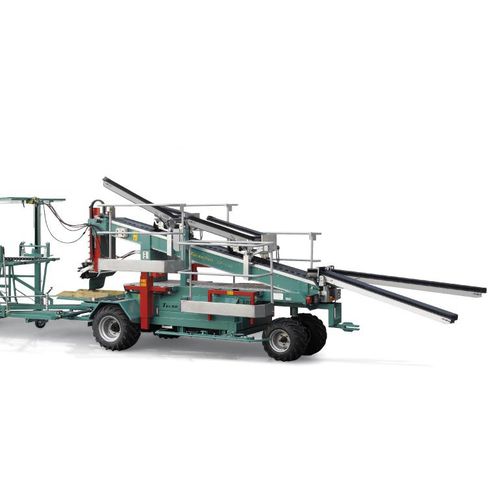

Apple picking machine Tecnofruit CF-110

towed

Fruit picking machine for row distances of 3,60 to 4,50 metres and plant heights to a maximum of 3,80 metres. Designed to be multi-purpose, it has a generous standard equipment, including the automatic trailer and the air compressor for 6 to 8 pruning shears. The CF 110 can be employed in many seasonal tasks. Equipped with a 4 cylinder Diesel engine, it has a top speed of 18 km/h. The four lateral platforms have generous dimensions (1,38 x 0,40 metres) which allow the pickers maximum freedom of movement. The high quality which distinguishes all the machines of the TECNOFRUIT series and the simplicity in handling them make these machines into ideal partners, also for large companies. Technical data Engine :Lombardini 4 cyl Type - Diesel:24.5 Kw/ 33,3 hp Front wheels drive:26x12.00-12'' 8 pr Front wheels (4WD):31x15.50-15” 8 pr Rear wheels:31x15.50-15'' 8 pr Service brake:Footbrake Emergency brake/Parking brake:Hydraulic negative Diesel tank capacity:70 lt Hydraulic oil tank capacity:110 lt Aux power :12 V - 15 A Air compressor:650 lt/min Speed:0-18 km/h Speed range:2 + 2 with inversor Transmission:Hydrostatic Steering control:Orbitrol Lenght (without bins trailer) mm:4.900 Width (min/max) mm:2.070/3.470 Height (min/max) mm:2.400/2.875 Wheel base mm:2.660 Ground clearance mm:200 Tourning radius m:4,20 Weight kg:2.355
