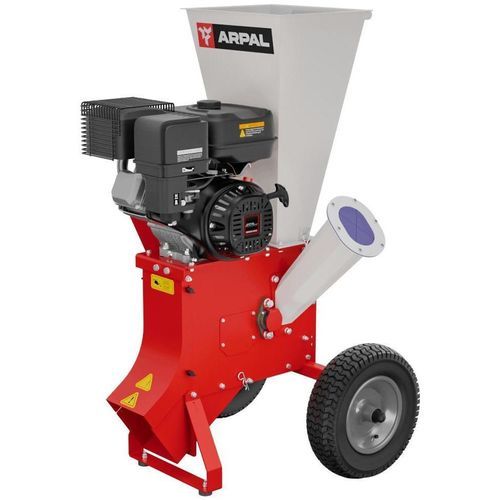

Wheeled wood shredder CLASSIC MS-80BD

gasoline engine

Product overview

The ARPAL MS-80BD (Classic series) is a combined gasoline-powered garden shredder with two input hoppers — the most popular ARPAL shredder for home use. The side hopper takes branches up to 90 mm in diameter; the top hopper handles thin branches, bark, vines, raspberry canes, leaves, grass and other garden waste. One compact machine processes everything a garden produces in a season. It complies with EU safety directives and is trusted by customers in Germany, Denmark, the United Kingdom, Switzerland, Canada and beyond.

The MultiCut system with calibration sieves delivers chips of a controlled fraction: with the standard 25 mm sieve the material is shredded until it passes through — clean, even chips for solid-fuel boilers, stoves and fireplaces, mulch, compost and smoking. Optional 15 and 20 mm sieves give finer fractions; removing the sieve entirely gives maximum productivity with a natural fraction. Please note: this shredder is designed for branches and garden waste — not for boards, beams, slabs or other sawmill material.

Key features

• Two input hoppers: side hopper feeds thick branches (up to 90 mm) to the cutting disc; top hopper feeds garden waste directly to the hammer section. Both hoppers have protective curtains against flying chips.
• MultiCut combined cutting system: a drum of two 10 mm CNC-machined discs — a cutting disc with 2 blades chops branches, then 10 hammers and 10 auxiliary blades on four guides refine the material until it passes the sieve; the drum is balanced after assembly; UCFL flange bearings.
• 2 LineCut cutting blades in ISO 60WCrV7 (1.2550) tool steel, induction-hardened to 60 HRC over a ductile core; hammers and auxiliary blades in impact-resistant AISI 5140 steel.
• Calibration sieves: 25 mm included as standard; 15 and 20 mm available separately; operation without a sieve possible for maximum throughput.
• PowerGuard friction clutch protects the engine from overload: if a branch stalls the cutting mechanism, the clutch disengages and the engine idles instead of stalling.
• Easy Start clutch engagement near 1500 rpm — smooth, stress-free startup for both operator and engine.
• ARPAL Total Protect safety package: hopper geometry compliant with EU garden machinery safety norms; impact-resistant curtains on both hoppers; belts, clutch and pulley fully enclosed in double-sided guards (quick to remove for service).
• ErgoBase functional design: 4 mm steel body; the top hopper detaches in seconds via two quick-release locks (no tools) — the shredder then fits into a compact van (Fiat Doblo / VW Caddy class); large Ø 400 mm pneumatic wheels and a balanced center of gravity — tilt it by the top hopper handle and roll it anywhere; support leg for stable operation; premium electrostatic powder coating that keeps the machine corrosion-free and "like-new" even after years of outdoor use.
• Options: additional blade and hammer sets; calibration sieves 15 mm and 20 mm.

Technical specifications

• Model: ARPAL MS-80BD (Classic series)
• Type: combined garden shredder (disc + hammer system), two input hoppers
• Drive: gasoline engine, 20 HP (4-stroke)
• Max. engine speed: 3,600 rpm
• Recommended fuel: unleaded gasoline, RON 95
• Fuel consumption: approx. 1.3 kg/h
• Max. branch diameter: 90 mm softwood / approx. 50 mm dry hardwood (oak, hornbeam, acacia)
• Processes: branches, bark, vines, stems, leaves, grass
• Output chip size: up to 25 mm with standard sieve (15 / 20 mm sieves optional)
• Cutting blades: 2 (LineCut, ISO 60WCrV7 / 1.2550, 60 HRC)
• Hammers / auxiliary blades: 10 + 10 (AISI 5140 steel)
• Dimensions (working position): 860 × 787 × 1390 mm
• Transport dimensions (top hopper removed, on pallet): 800 × 600 × 1535 mm
• Weight: 120 kg

Documentation

Operator and maintenance manual available for download, including detailed setup, operation and service instructions.

Warranty

3 years on all shredder components — including bearings, bolts and even the paint coating. The engine is covered by a separate 1-year manufacturer warranty. Consumables (blades, belts, clutch friction pads) excluded. Full technical support throughout the entire service life of the machine.
