Universal refractometer PMR series

with temperature control

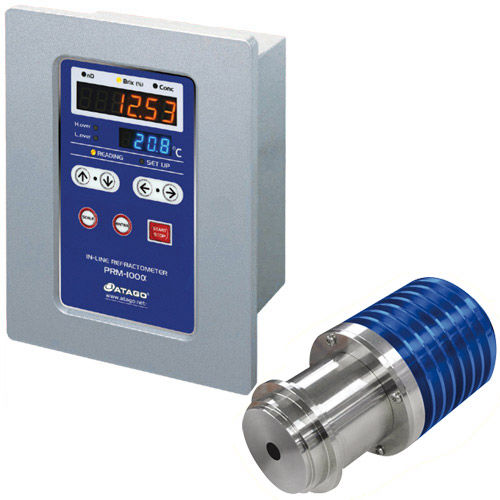

Model PRM-100α Standard Titanium,Hastelloy PRM-2000α Low-concentration more precisely! PRM-TANKα(FER) Mounted on the Tank (Ferrule) PRM-TANKα(FLN) Mounted on the Tank (Flange) In-line Refractometer PRM-100α The unit measures the refraction of light generated between the prism surface and a liquid sample. The PRM-100α is upgraded from the PRM-85 in the following aspects: • Wider than ever 0.0 to 100.00% Brix range • Improved measurement accuracy: Brix ±0.05%, nD ±0.00010 • Two options for setting the minimum indication decimal place • Simple two-piece construction: detection section and operation display section • Easy-to-read color display panel. Simply attach the unit to a piping system to monitor food or beverage production, pharmaceutical production, industrial fluid, washing devices, dilution/mixing devices, etc. Continuously monitor water content and mixing ratio with successive measurements of refractive index, Brix, or concentration. *The prism is specially designed to prevent solid materials from collecting on the surface, even after extended periods of use. Specifications Model:PRM-100α Cat.No.:3574 Measurement item:Refractive Index (nD), Brix, concentration (%),temperature. Range:Refractive index (nD) : 1.32000 to 1.55700 Brix : 0.00 to 100.00% Resolution:Refractive index (nD) : 0.0001 or 0.00001 Brix : 0.1 or 0.01% Accuracy:Refractive index : ±0.00010 Brix : ±0.05% Temperature compensation:5.0 to 100.0ﾟC Wetted parts temperature resistance:5 to 150ﾟC High and low limit setting:High and low control limits can be set with keys. Output:RS-232C, DC4 to 20mA
