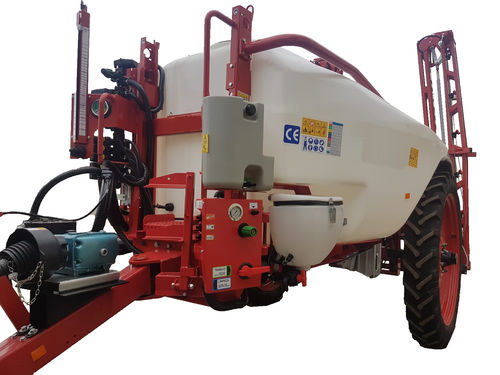

Towed sprayer CERES

hydraulicfolding armswith diaphragm pump

Tank - In high density polyethylene (HDPE) with wider breakwater, 4.400 litres (4.000 litres + 10%). Level Gauge - Dry visible gauble, visible from cabin and working position. Rinsisng tank - Independent. In polyethylene HDPE (400 litres). Include level gauge. Product mix tank - Multifunction, with parallelogram of self-abatement. Automatic blocking. VARIOTRON system - Intuitive, ergonomic and simple. Controls and tank opening - Situate to the left of the sprayer. 3 suspension system - In shaft (pneumatic); in towbar (adaptable to the degree of weight); in booms (oleohidráulica) Suspension - In shaft (pneumatic); in towbar (adaptable to the degree of weight); in booms (oleohidráulica). Elevator - Parallelogram with suspension. Working height 500 - 1.200 mm. DUAL PRESS - Double presurization: work pressure and auxiliary services pressure. Front tank - Prepared for auxiliary front tank inclusion. Drainage - Asisted by pump. Frame - Reinforcer steel structure , with Polymerized hot polyester paint. With anti-slip surface. Prepared for working with liquid fertilized of a médium density. - Adjustable wheel track width 1.600-2.200mm. - Ring hitch linkage. - Computer control 7 section, with flow gauge. - Booms of 24 mts, vertical folding model i7-S with Sensor Line, automatic balance type pendular and EAYSY-LEVEL - Booms include lateral damping system on the wings.
