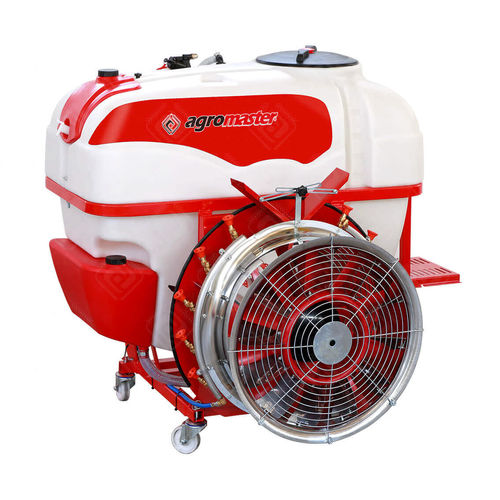

Mounted sprayer TAS series
gardenmanualair-assisted

Mounted sprayer - TAS series - Atespar Motorlu Araclar San. ve Tic. Ltd. Sti. - garden / manual / air-assisted
Mounted sprayer - TAS series - Atespar Motorlu Araclar San. ve Tic. Ltd. Sti. - garden / manual / air-assisted
Mounted sprayer - TAS series - Atespar Motorlu Araclar San. ve Tic. Ltd. Sti. - garden / manual / air-assisted - image - 2
Add to favorites
Compare this product


Characteristics

Mobility
mounted
Application
garden
Control regulator
manual
Other characteristics
air-assisted
Capacity

400 l, 600 l
(105.7 gal, 158.5 gal)

Working width

Min.: 12 m
(39'04" )

Max.: 16 m
(52'05" )

Air flow

54,000 m³/h
(1,906,992 ft³/h)

Description

Mounted type 400,600 L mistblowers are used for multipurpose plant protection. Mistblowers connected to three point linkage of tractor and powered by P.T.O Spraying pump is getting the power from P.T.O. and deliver the liquid under the pressure to nozzles on the spray fan. Propeller getting drives by PTO provide pressured air release in the field.Release of the pressured air direction cen be adjusted by guide wings. By means of this facility, pressured air can spray effectively each type trees 2 rowed 10-15 meters height as fruit gardens,vineyards and cultivated areas.400,600 L sprayer tanks are produces from polyethleylene or fiberglass material.All sprayers have a filter system which enables spraying without blocking. There are cartidge filters before tank outler and nozzle inlet, also a sieve at the intake of the tank.By changing angle and direction adjustable spraying nozzle plates, the amount and the direction of the spray can be adjusted. Double-side anti-drip nozzles are standard accessories of sprayers.Cleanable 3 way filter provides healty working conditions during the filling of tank and disinfection and fan protection string for prevention against accidents.TAS series mounted mistblowers has; • Polyethylene Tank • Hand washing tank apart from main tank supplies clean water • Painted Steel Chassis • High Pressure Pump • Chrome Fan • Automatic filling system with filter that fills into the spraying tank by pumping water from the canal or any source with the suction höse
