Milking equipment washing system Auto Wash 365

automaticprogrammablewith controller

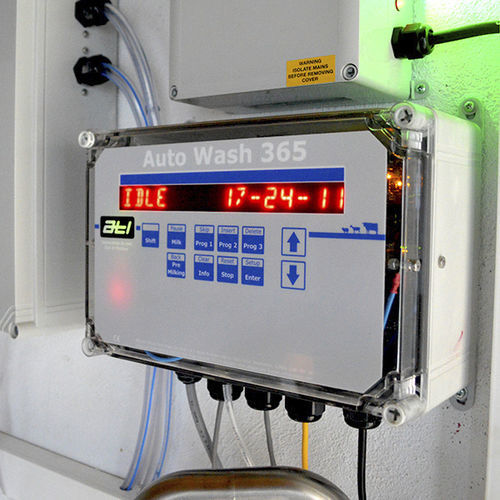

The Auto Plant Wash 365 from ATL is a simple and easy to use wash controller that washes the parlour automatically after each milking. It provides more consistent and efficient cleaning using less chemical than manual washing irrespective of the operator. The system is programmable and it’s versatility provides an excellent wash to any type of small to medium size milking parlour. Control Features Fully editable programs and settings allowing Auto Wash 365 to be optimised for every milking parlour. Large LED display showing washing status. 4 wash programs, including dedicated pre-milking key. Complete fault code log saved in memory for easier fault traceability. 3 different hot and cold water valve sizes – 10mm internal, 13mm internal and large bore external water valves. Pump Unit Features Separate pump unit keeps electronics and chemicals apart. Peristaltic pumps accurately dispenses chemicals at up to 0.7 litres per minute – up to a maximum of 3 pumps. Automatic chemical dispensing reduces operator handling of chemicals to a minimum. Additional Features Temperature sensor for wash trough. Stainless steel float level sensor in wash trough. Controls 1 hot water valve and 1 cold water valve – either 10mm or 13mm 12vDC valves. Vacuum operated 3 way diversion valve in return line for diverting to drain or wash trough. Controls up to 2 vacuum pumps – staggered start of vacuum pumps standard to ease load on 1 phase systems – requires motor starter for each vacuum pump (optional. Link to ATL MIlk Meters, Milk Pump Control and AirBlast Control to change mode between wash, milk and idle via one button press.
