Milking parlour feed controller

automatic

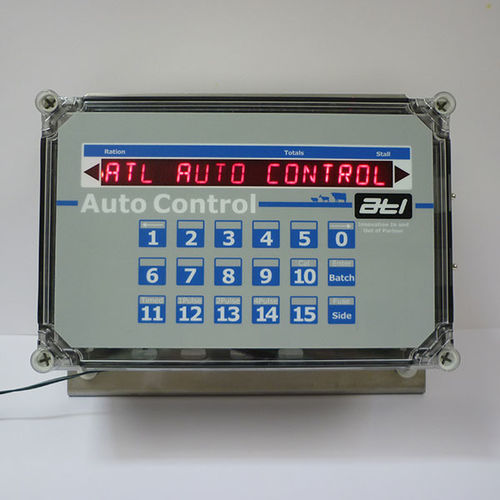

The Auto Feeder Control is the new and improved version of the AutoXL control. It is a simple and easy to use ration feeder control. Specifications -12/24vDC switching positive or negative feeders as standard -12-230vAC feeder switching voltage optional using Feeder Interface -Drives electric, vacuum or compressed air feeders -Electronic fuse detection with power supply failure warning -Drives 12 or 16 feeders per side as standard -Expandable to 32 feeders per side using Feeder Relay Extender Box System Features As the cows enter the parlour, you simply press the appropriate ration key for that cow. The ration is then delivered to the correct stall because the Auto automatically sets the stall and the side. One key press, it’s that simple. The Auto also remembers ration keys that have been pressed so there is no waiting for a feeder to finish before another ration can be entered. Available with 16 feeder outputs per side Feeds on both sides at the same time Total showing amount of feed left in the feed bin Low feed warning – alarms when feed left in feed bin drops below user set level Ethernet communications Comprehensive error reporting providing easy fault diagnosis Individual or batch feeding Batch stand-by feeding Individual and global digital feeder calibration Sequential or stored feeding modes Totals showing the amount of feed fed during the milking, the number of cows fed during the milking, cumulative feed fed for all milkings and feed left in feed bin Warning when feed left in bin reaches user set level Detailed error reporting makes fault finding easy Stainless steel mounting bracket and fixing kit included
