Manure pump 290mobilehorizontal
Add to favorites
Compare this product
Characteristics
- Application
- manure
- Other characteristics
- mobile, horizontal
- Flow
Min.: 77.18 m³/h
(2,725.58598 ft³/h)Max.: 454 m³/h
(16,032.85869 ft³/h)- Power
213 kW
(289.6 hp)
Description

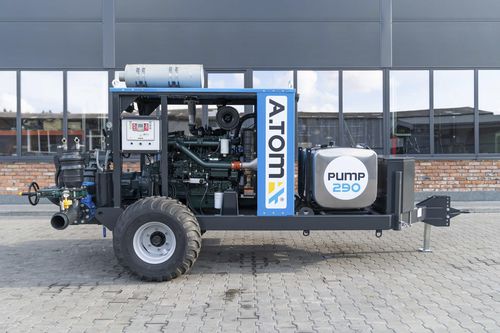

A.TOM PUMP 290 stations are designed for pumping of liquid manure, liquid effluents from storage facilities and its subsequent application to the fields as organic fertilizers.
Technical features of Cornell 4NHTB pump
Discharge size 101.6 mm
Suction pipe size 127 mm
Solids handling 7.62 cm
Max. speed 2000 rpm
Shut-off head 143.3 m
BEP head 119.8 m
BEP flow -422.901 m3/h
BEP percent 70 %
Technical features of DOOSAN engine
Max. torque 1095 (111,7) / 1600 - Nm (kg.m)/ rpm
Engine type Linear 4 cycles, water cooling (radiator) -
Number of cylinders 6 - pcs.
Engine capacity 8 - l.
Fuel type Diesel
Oil tank capacity 15 l.
Overall dimensions of the station
Length 4,9 m.
Height 2,4 m.
Width 2,3 m.
