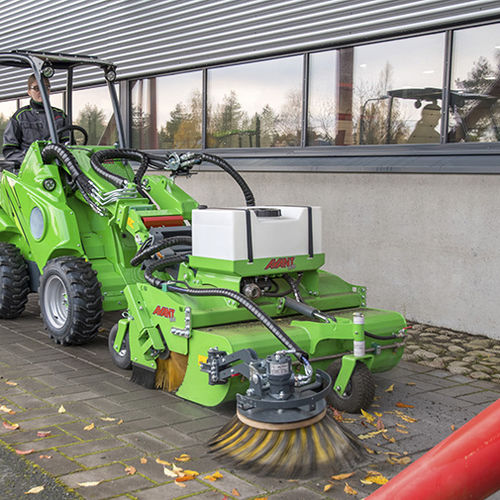

The collecting broom 1100 is mainly intended for Avant 200, 400 and 500 series. Broom diameter is 500 mm, it consists of 32 pcs brush segments which can be changed one by one. The broom is equipped with three support wheels and with Optifloat™ quick attach system which allows both vertical and sideways floating of the broom and guarantees efficient sweeping also on uneven surfaces. Two indicator arrows on the Optifloat™ quick attach bracket make adjustment of the floating very easy. Broom height can be adjusted manually, to compensate wear of the nylon bristles.
Collector box with 80 l volume is mounted in front of the broom. Emptying of the box is hydraulic. Water spraying system for dust binding and one side brush are available as an option.
.Intended mainly for 200, 400 and 500 series
.Equipped with Optifloat™ > works well on uneven surfaces as well
.Broom height can be adjusted manually
.Collector box with hydraulic emptying in front of the broom, box volume 80 l
TECHNICAL INFORMATION
Total width:1350 mm
Broom diameter:500 mm
Collector box volume:80 l
Water tank volume:60 l
Weight without side brush:315 kg*
Weight with 1 side brush:340 kg*
*) without water spraying system
