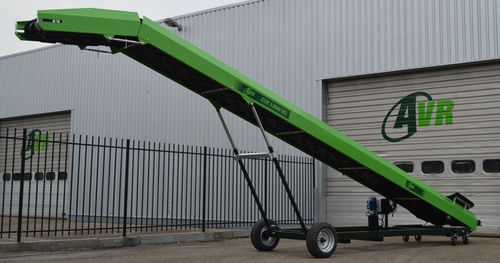

Potato elevator CTK 1050/85

beltflexible

Flexible and solid The CTK 950/70 and 1050/85 are designed to be stable and solid at larger lengths, which is achieved by using a single-piece frame (monobody frame). The belt drive (drum motor) is located in the machine’s head, which means the conveyor is driven by means of a pulling motion. This prevents belt slipping. Using a drum engine has numerous advantages. The installed drum motors are very reliable, and the belt drive needs no maintenance whatsoever. High capacity without product damage All AVR transporters are equipped with V-shaped high chevron belts (running side walls) that cover the frame parts, which offers two advantages. The capacity is significantly higher because more product remains on the belt, and thanks to the V-shape, the product never comes into contact with the frame parts, which makes sure it is not damaged. At the conveyor belt’s outlet side, the machine is equipped with an adjustable swan neck. This ensures that the drop height can be limited to a minimum and prevents product damage. User-friendly The CTK 70 and 85 series are designed to be operable and movable with minimal effort. The tandem chassis with casters makes sure that unevenness of the surface is compensated for, and ensures that the elevator can easily be moved by one person. By default, the CTK 70 and 85 series are equipped with electrical height adjustment and a light, removable tow bar.
