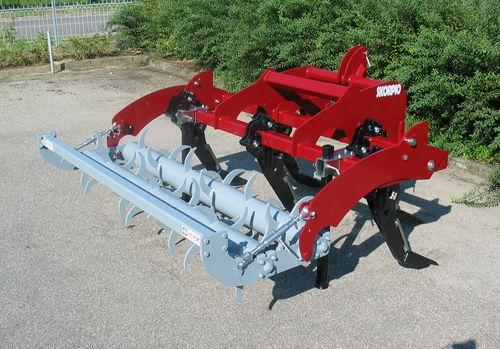

Subsoiler with roller SKORPIO STANDARD

fixedwith hydraulic adjustmentwith gauge wheels

The subsoiler CKD/ SKORPIO STANDARD is available with frame from 2,50 m to 2,75 m and it can mount both 5 or 7 tines. Its structure is very strong to withstand work with tractors from 95 up to 150 HP. CKD/ SKORPIO STANDARD is provided with safety bolts of 16 mm, and its tines are equipped with wear and tear standing protections and hardened shares. It can work at a depth from 30 to 60 cm. The layout of the tines and the wide frame allow CKD/ to easily work also in wet soils having at the same time a considerably lower power absorption in comparison to traditional subsoilers. The main features of the model CKD/ and of all the Badalini subsoilers are: no lifting of stones and clods; breaking of the ploughing coat; no presence of open furrows; increased volume of worked soil; reduction of water stagnation on the surface; formation of deep water reserves. CKD/ SKORPIO STANDARD has a high clearance under the frame (85 cm) which allows considerable depth of work. The great versatility of its tines allows it to obtain high working speeds up to 10 km/h. It is possible to add to the machine back discs or rollers.
