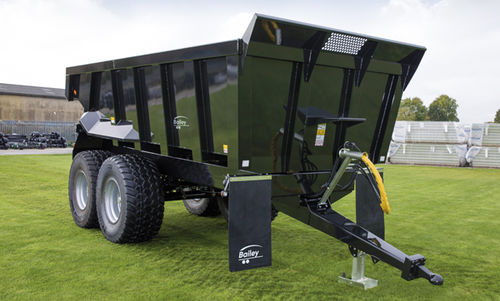

Dump trailer CD Series

tipping2-axleagricultural

Designed for hard work on demanding job sites, our heavy-duty Contract Dumpers are proven performers. Strength comes as standard with 6 mm floor (4 tonne), 8 mm floor (6, 8, 10, 12, 14 tonne) and l0 mm floor (17 & 20 tonne models) on 150 x 100 mm RHS. The top chassis is fitted with 120 x 120 mm SHS cross member and 4 mm Sides (4 tonne), 6 mm sides (on 6, 8, 10, 12 & 14 tonne) and 8 mm (17 & 20 tonne models) with RHS frame. We’ve fitted a deep section box channel to withstand stone, concrete, rubble and other hardcore materials. A heavy duty RHS bottom chassis is mounted on a heavy-duty tandem spring unit. The 17 & 20 tonne models feature a unique anti-jack knife system which, when tipping, automatically locks the tandem unit for greater stability. Standard features Hydraulic hose carrier, LED lights to RTA, independent hydraulic brakes, parking brakes, 40 mm EN8 towing eye, skid & skid carrier, mudguards, chromed rams. Optional extras Nudge bar, sprung drawbar, high speed axles, rear drawbar, flotation tyres.
