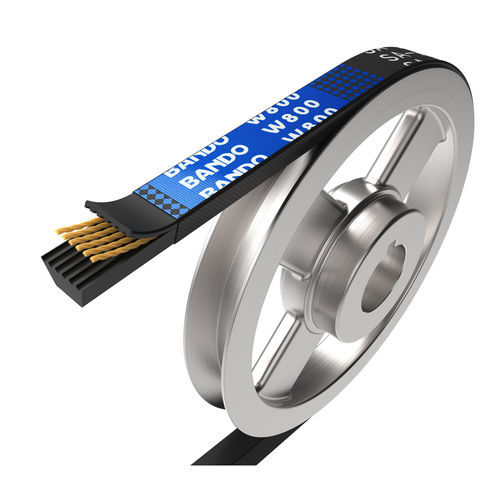

V transmission belt W800

for tractorsfor farm machineryfor combine harvesters

Compared to standard V-belts, W800 has superior durability in use of reverse bending and is best suited for use under conditions where the pulleys are exposed to back of the belts. It is a higher grade product to RED-S™ and is superior in terms of life, anti - shock and transmission capacity. Usage W800 is especially suitable for tractors, combine harvesters, snowblowers, rice transplanters and cultivating machines, which have conditions, where the pulleys contact to the back of the belts. V-belts for agricultural machinery are suitable for usage in both conditions, where the pulleys contact to the belts from their rear and where small pulleys can be used. "Pulleys contact to the back of the belts" means the situation, where the tension clutch or other pulleys are exposed to the back of the belts, as shown in the figure. Size range are available; SA Type: a x b(mm) 12.7 x 7 Size Range: 27-200 (Length, inch) SB Type: a x b(mm) 16.7 x 9 Size Range: 27-200 (Length, inch) SC Type: a x b(mm) 22.2 x 11 Size Range: 40-200 (Length, inch) Differences between V-belts for agricultural machinery and standard V-belts Agricultural V-belts - Standard V-belts Belt Sizes: 　SA type - SB type - SC type - A type - B type - C type Pulley used:　A type - B type - C type - A type - B type - C type The trend in agricultural machinery is toward compactness, which increases the use of pullys exposed to the back of the belts. The feature of thin thickness is provided to improve strain resistance due to the same situation.
